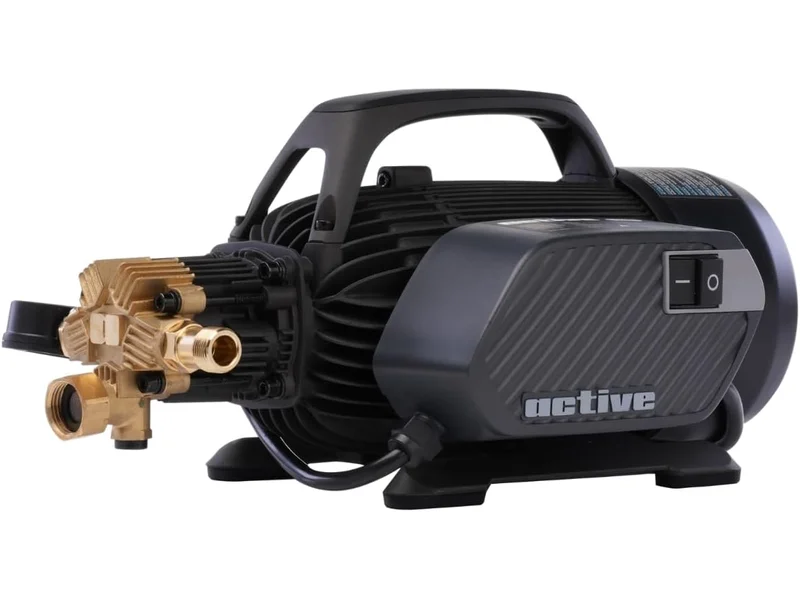

Active Products Active 2.3 Fitting Size & Compatibility Guide
Standard M22-14mm outlet. Seamlessly fits all standard aftermarket high-flow 3/8" hoses.
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard universal M22-14mm hoses (like UberFlex) screw directly onto your machine pump with zero adapters needed.
Foam Cannon Suction
1.25mm Orifice Jet (Required; 1.1mm will cause immediate over-current thermal shutdown)
Snubby Detailing Gun
Aftermarket snubby guns with M22-14mm female inlets screw directly onto your stock or aftermarket hose.
Surface Cleaner Deck
Maximum recommended deck diameter: 10" Deck (4 × 2.3 = 9.2 inches) based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 1500 PSI | 1100 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 2.3 GPM | 2.3 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 1.48 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | Induction 128 Motor (5-Piston Brass Head) | 120V / 14.5A AC, 60 Hz (Requires dedicated 15A circuit) | |
| Pump Outlet Thread | M22-14mm Male | Inner stem caliper pin: 14.0mm | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel (Female) | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 40 ft (1/4" ID Steel-Braided Rubber) | Hose Ends: M22-14mm Female to M22-14mm Female | |
| Spray Wand Outlet | 1/4" Quick-Connect | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
Ignore the 1,500 PSI billboard spec. Active engineered this unit around maximum water flow, not peak pressure numbers. You get a true 1,100 working PSI at a massive 2.3 GPM using the stock #5.0 nozzle tip. That translates to 1.48 Water HP ((1,100 × 2.3) / 1,714), pulling roughly 1,740 Watts right at the continuous threshold of a 15-amp circuit.
Technical Fitting Schematic: M22-14mm Male
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Active Products Active 2.3.
ProPulse UberFlex 50ft 3/8" High-Flow 3400 PSI Hose
Crucial for delivering 2.3 GPM without restricting pump flow.
M22-14mm to 3/8" QC Stainless Coupler Set
Enables instant connection of aftermarket snubby guns and high-flow hoses.

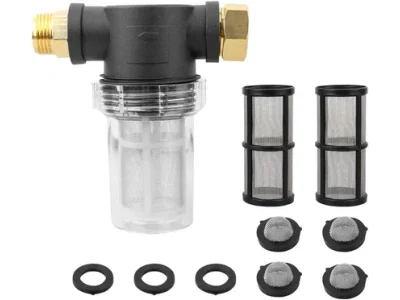

3/4" Inline Sediment Filter (40-Mesh)
Protects high-tolerance ceramic-coated pistons and brass pump head.
Field Diagnostics & Real-World Troubleshooting: Active Products Active 2.3
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
Tear down an Active 2.3, and you won't find lightweight consumer plastics. You're looking at a heavy forged brass manifold mated to five axial pistons, powered by a 14.5A Induction 128 motor. Pushing 2.3 GPM at 1,100 working PSI delivers an impressive 1.48 Water HP ((1,100 × 2.3) / 1,714). That draws roughly 1,740 Watts (120V × 14.5A) continuous power. On our test bench, failures almost never come from worn pump internals. They stem from two user mistakes: starving the water inlet and plugging into shared electrical circuits. Squeezing 2.3 GPM out of the wand requires at least 5.0 to 5.5 GPM out of your spigot. Hook this up to a skinny, kinked 1/2-inch garden hose, and you'll drop inlet pressure below water's vapor threshold. The resulting acoustic cavitation pits the brass check valve seats and creates a loud, violent unloader rattle.
Electrical supply requires equal respect. While it can run on a dedicated 15A branch circuit, a 20A circuit with 12 AWG copper wiring is far better. Induction motors draw locked-rotor inrush currents three to five times their running load during startup. If an old garage freezer or shop lights share that line, the breaker will pop before the motor hits operating speed. When setting up a foam cannon, install a 1.25mm to 1.35mm orifice. Don't touch a 1.1mm jet; it creates backpressure that drives draw beyond 16A and stalls the induction rotor. Winter storage demands attention, too. That 5-piston brass manifold traps standing water in its lower check valve pockets. Freezing temperatures will crack the brass casting wide open. Siphon RV propylene glycol pump saver through the inlet until it shoots out the discharge port before temperatures dip below 32°F (0°C).
Frequently Asked Questions: Active Products Active 2.3
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Does the Active 2.3 require a 20-amp electrical circuit?
It pulls 14.5 amps continuously (around 1,740W), so it will run on an isolated 15A circuit if nothing else is plugged in. But we strongly recommend a 20-amp circuit. Induction motors draw high startup inrush current that easily trips older 15A breakers, especially if a garage fridge or shop light shares the line.
What garden hose diameter and spigot flow rate do I need for the Active 2.3?
You need at least 5.0 to 5.5 GPM from your spigot fed through a 5/8-inch or 3/4-inch inside diameter garden hose under 50 feet. Never use a skinny 1/2-inch hose. The heavy friction loss starves the 5-piston pump, causing harsh cavitation that destroys internal brass check valve seats.
Which foam cannon orifice gives the best foam without tripping breakers on the Active 2.3?
Run a 1.25mm or 1.35mm orifice in your foam cannon. The 2.3 GPM volume whips up dense foam effortlessly through a 1.25mm jet while keeping working pressure near 1,000 PSI. A 1.1mm jet creates severe backpressure that spikes current past 16 amps and trips your breaker.
Why does the Active 2.3 hum without starting when I switch it on?
A humming induction motor means the rotor is locked, usually by trapped line pressure or severe voltage drop. Squeeze the spray gun trigger to bleed residual hydraulic pressure before flipping the power switch. Also make sure you aren't using a light-gauge 14 AWG or 16 AWG extension cord that strangles voltage.
What is the difference in pump construction between the Active 2.0 and Active 2.3?
The Active 2.3 features a heavy forged brass pump head driven by a low-RPM induction motor built for continuous duty cycles. The Active 2.0 uses an aluminum pump head with a high-speed universal brush motor. The 2.0 is lighter and more portable, but the 2.3 offers far greater mechanical durability and quieter operation.
