Pumps push water; nozzles build pressure. It is the single most misunderstood rule in pressure washing. A positive displacement triplex pump simply pumps a fixed volume of water every stroke—if that flow hits a tiny pinhole, pressure spikes; if it flows through a garden hose, pressure vanishes. Jamming the wrong tip on your wand bogs your engine, cooks pump packings in bypass, or leaves you scrubbing concrete at half power. Run your pump flow and operating pressure through the tool below to dial in the exact orifice size, check physical drill dimensions, and size surface cleaner spray bars without guesswork.
Orifice Size vs. Spray Degree: That 5-Digit Stamp Decoded
Spray tip colors only tell you the fan width, not how much water they flow. Take a standard nozzle stamped 25040. The first two digits (25) mean a 25-degree wide spray pattern. The last three digits (040) mean an orifice size rating of 4.0. Swap from a green 25° tip to a yellow 15° tip with that same 040 orifice, and your pump gauge will not budge a single PSI. All you changed was the spray fan width on the driveway.
Undersized Nozzles Cook Unloader Valves
Throwing a 3.0 orifice tip onto a 4.0 GPM commercial washer to get "more punch" is a fast way to kill a pump. Water cannot be compressed. When 4 gallons per minute try to squeeze through a 3-gallon hole, that trapped excess has nowhere to go except blowing past the unloader valve into bypass. Inside that closed loop, friction heats the water past 145°F within two minutes, melting your V-packings and scouring the ceramic plungers.
Pressure Washer Nozzle Sizing & Tip Selector
The 5 Standard Quick-Connect Spray Tip Colors
Your nozzle's metal orifice hole controls pressure and flow restriction. The plastic collar color simply controls the fan spray angle. Standard color-coding is universal across every brand—from homeowner Simpson and Generac units to commercial Landa and Pressure-Pro skids:
Delivers a solid, zero-degree laser beam with maximum impact force. Zero fan spread. Keep this tip away from siding, wood decks, and automotive clearcoats—it will gouge lumber and strip paint instantly. Save it for knocking mud off steel excavator tracks, reaching second-story wasp nests, or stubborn rust on iron.
Acts like a hydraulic putty knife. The narrow 15-degree blade lifts peeling paint from masonry, strips oxidation, and cuts through hardened grease spots on garage floors. Hold the wand at a 45-degree angle so the water chisels underneath grime rather than hammering it straight down.
The workhorse tip in every contractor's pocket. Offers enough sweeping width for efficient sidewalk cleaning while maintaining strong hydraulic impact. Ideal for washing cured concrete, aggregate driveways, brick pavers, and steel utility trailers without surface damage.
Spreads water volume over a wide, gentle curtain. Essential when washing vehicle paintwork, delicate vinyl siding, stucco, composite decking, and exterior windows where high concentrated impact would crack glass or blast water behind weep holes.
Features an oversized bore that drops system back-pressure below 200 PSI. That sudden pressure drop creates the venturi vacuum inside downstream chemical injectors, pulling soap from your chemical jug into the hose. See our Chemical Dilution Calculator to dial in exact bleach and surfactant ratios.
Nozzle Orifice Size Chart (GPM vs. Operating PSI)
Reference table for single-gun spray setups. To find your nozzle size, match your machine's real water flow (GPM) along the left column to your operating pressure (PSI) across the top:
| Machine Flow (GPM) | 2,000 PSI | 2,500 PSI | 3,000 PSI | 3,500 PSI | 4,000 PSI | Best Surface Application |
|---|---|---|---|---|---|---|
| 2.0 GPM (Electric units) | Size 2.8 | Size 2.5 | Size 2.3 | Size 2.1 | Size 2.0 | Auto detailing, vinyl siding, patio furniture |
| 2.5 GPM (Entry Gas) | Size 3.5 | Size 3.2 | Size 2.9 | Size 2.7 | Size 2.5 | Home driveways, garage slabs, wood fences |
| 3.0 GPM (Mid-range Gas) | Size 4.2 | Size 3.8 | Size 3.5 | Size 3.2 | Size 3.0 | Sidewalks, brick walks, 12"–14" surface cleaners |
| 4.0 GPM (Commercial standard) | Size 5.7 | Size 5.1 | Size 4.6 | Size 4.3 | Size 4.0 | Commercial flatwork, 16"–18" surface cleaners |
| 5.5 GPM (High-flow pro) | Size 7.8 | Size 7.0 | Size 6.3 | Size 5.9 | Size 5.5 | Commercial fleet washing, 20"–22" surface cleaners |
| 8.0 GPM (Industrial skid) | Size 11.3 | Size 10.1 | Size 9.2 | Size 8.6 | Size 8.0 | Parking garages, roof soft-washing, 24"–30" cleaners |
The Science: Why Nozzle Orifice Math Works
Nozzle ratings in the exterior cleaning industry are based on a simple baseline: a size 4.0 orifice flows exactly 4.0 GPM at 4,000 PSI. Because water is an incompressible fluid, flow through an orifice follows Torricelli's and Bernoulli's principles, where velocity scales with the square root of pressure differential:
Notice the square root. If you want to double your pressure from 2,000 PSI to 4,000 PSI while maintaining the same 4.0 GPM pump output, you do not cut the orifice diameter in half. You reduce the orifice cross-sectional area by roughly 29% (√2 ≈ 1.414). That exponential relationship is why a worn nozzle that has eroded by just a few thousandths of an inch will rob your setup of 400 to 600 PSI without making a sound.
Sizing Nozzles on Surface Cleaners: Don't Starve Your Spray Bar
A common mistake when replacing surface cleaner nozzles is buying two tips matching your machine's full GPM rating. If you run a 4.0 GPM pressure washer and screw two size 4.0 tips into the spray bar, each nozzle tries to flow 4 gallons. Together they create an 8.0 GPM opening. Your working pressure collapses from 3,500 PSI down to around 800 PSI, the bar barely spins, and concrete cleaning grinds to a halt.
Always divide machine flow across the number of nozzle ports:

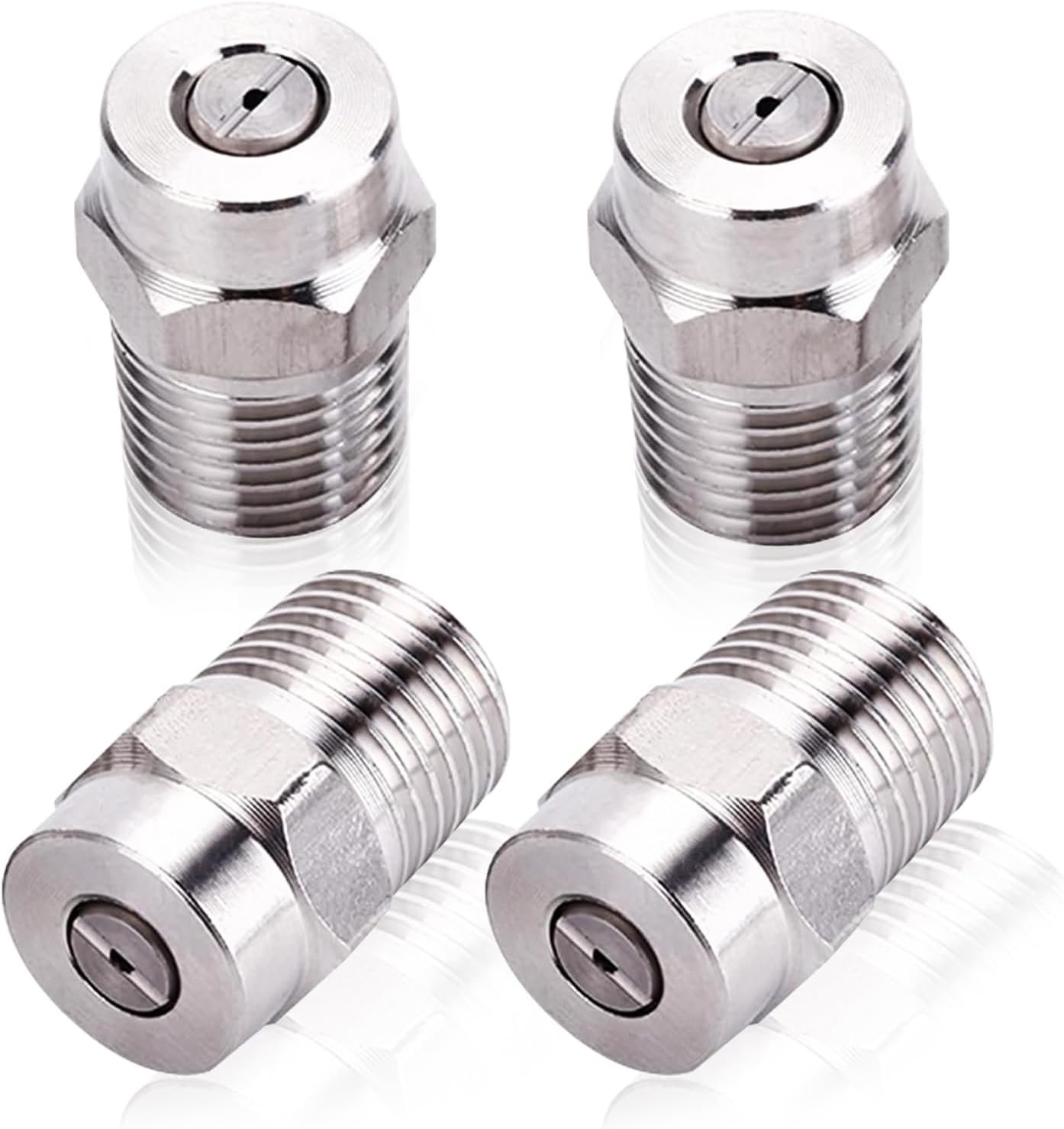

- 2-Tip Spray Bar (Standard): Machine GPM ÷ 2. A 4.0 GPM machine needs two size 2.0 tips (stamped
25020). - 3-Tip Commercial Bar: Machine GPM ÷ 3. A 6.0 GPM machine needs three size 2.0 tips (stamped
25020). - 4-Tip Water Broom: Machine GPM ÷ 4. A 4.0 GPM machine needs four size 1.0 tips (stamped
25010).
Need to size your rotary deck to match your machine so you don't etch zebra lines into wet concrete? Head over to our Surface Cleaner Size Calculator. If you run long hose lines that eat up pressure before reaching the gun, diagnose line drop with our Hose Friction Loss Calculator.
Calibrated by Najam
I have spent years testing positive displacement pumps, diagnosing unloader failures, and measuring real-world spray bar telemetry with liquid-filled glycerin gauges. This calculator runs on standard sharp-edge orifice discharge coefficients (κ ≈ 0.62) to give you honest numbers that match shop gauges, not generic marketing claims.
Frequently Asked Questions About Pressure Washer Nozzle Sizing
How do I know what size nozzle I need for my pressure washer?
You need your pump's real water flow (GPM) and your target operating pressure (PSI). Plug them into the standard hydraulic formula: Nozzle Size = GPM × √(4000 ÷ PSI). A 4.0 GPM pump running at 3,500 PSI requires a size 4.3 orifice (rounded to standard commercial size 4.5). Picking a tip that is too small forces water into unloader bypass, overheating the pump; picking an oversized tip lowers your working pressure so you can safely wash siding or cars.
What do the numbers on a pressure washer spray tip mean (e.g. 25040)?
Spray tips use a standard 5-digit code. The first two digits indicate the spray fan angle in degrees, while the last three digits indicate the orifice size rating multiplied by 10. For instance, a 25040 nozzle sprays a 25-degree wide fan through a size 4.0 orifice (which flows 4.0 GPM at 4,000 PSI). A 15035 tip produces a 15-degree chisel spray through a 3.5 orifice. The color collar only tells you the spray fan angle—the stamped numbers dictate your actual water flow and pressure.
Can I lower my pressure washer's PSI by putting on a larger nozzle?
Yes. Swapping to a larger orifice tip is the only mechanically sound way to drop working pressure. A triplex plunger pump is a positive displacement machine—it pushes its full volume of water every revolution. Giving that flow a larger exit hole naturally drops restriction and lowers pressure at the spray gun while your unloader valve stays fully closed, relaxed, and cool. Never crank down your unloader spring to lower pressure; that ruins the unloader calibration.
What happens if I use a nozzle that is too small for my pressure washer?
Your pump fights hydraulic resistance it was never built to handle. System pressure spikes above the pump's rated ceiling, forcing the unloader valve into continuous bypass. The trapped water recirculates in a tiny loop through the pump manifold, heating up by several degrees every second. In less than three minutes, water temperature exceeds 145°F, softening high-pressure packings, scouring ceramic plungers, and risking a cracked brass manifold.
How do I calculate nozzle sizes for a surface cleaner with 2 or 3 spray tips?
Divide your machine's total flow by the number of spray tips on the rotating bar. On a standard 2-nozzle bar running off a 4.0 GPM washer, divide 4.0 by 2 to get 2.0 GPM per tip. At 3,500 PSI, that calls for two size 2.0 threaded tips (stamped 25020). If you mistakenly screw in two size 4.0 nozzles, your surface cleaner creates an 8-gallon opening, dropping pressure from 3,500 PSI to roughly 800 PSI, which stops the bar from spinning.
Does a rotary turbo nozzle require a different orifice size than a standard fan tip?

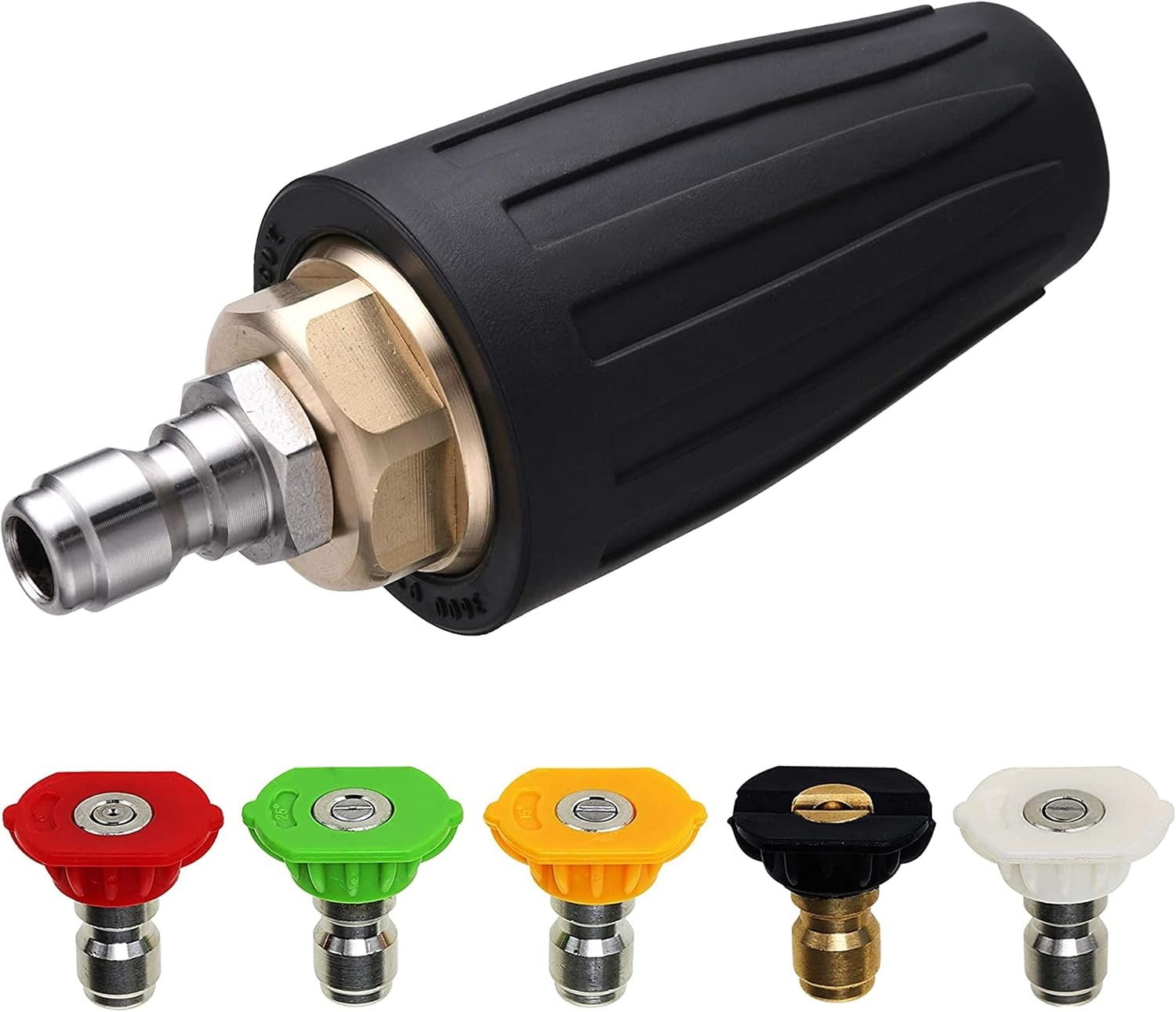

No. A rotating turbo nozzle uses the exact same orifice rating as a standard 0° or 25° fan tip. A 3.0 GPM / 3,000 PSI pressure washer takes a size 3.5 turbo nozzle. What makes a turbo nozzle feel significantly more powerful is mechanics: it spins a high-velocity 0-degree pinpoint jet in a tight 20-degree cone, delivering up to 10 times the scrubbing impact of a wide fan without needing a smaller hole.
How can I tell if my pressure washer spray tip is worn out?
Nozzle orifices erode over time from cavitation and high-velocity water friction, especially after 60 to 100 hours of trigger time. If your operating pressure has gradually dropped by 200 to 500 PSI over a few weeks while your engine runs at normal 3,400–3,600 RPM, the metal hole has worn larger. Inspect the tip opening with a magnifying glass or check it against a drill gauge; an egg-shaped or enlarged hole means it is time for a fresh tip.
