Champion Power Equipment 100778 Fitting Size & Compatibility Guide
Standard M22-14mm male outlet.
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard universal M22-14mm hoses (like UberFlex) screw directly onto your machine pump with zero adapters needed.
Foam Cannon Suction
1.25mm Orifice Jet
Snubby Detailing Gun
Aftermarket snubby guns with M22-14mm female inlets screw directly onto your stock or aftermarket hose.

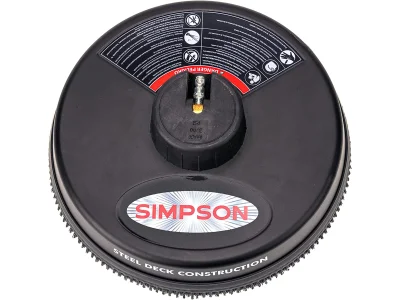

Surface Cleaner Deck
Maximum recommended deck diameter: 12" to 15" Deck based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 3200 PSI | 2800 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 2.4 GPM | 2.35 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 3.84 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | Champion 224cc 4-Stroke OHV Engine | ||
| Pump Outlet Thread | M22-14mm Male | Inner stem caliper pin: 14.0mm | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 25 ft (1/4" ID) | Hose Ends: M22-14mm Female | |
| Spray Wand Outlet | 1/4" Quick-Connect | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
The 3,200 PSI stamped on the frame is pure static burst pressure before the unloader cracks open. In real-world operation, this 224cc engine pumps roughly 2,800 working PSI at 2.35 GPM through a standard #3.0 nozzle. That pulls 3.84 Water HP ((2,800 × 2.35) / 1,714), keeping the engine comfortably inside its continuous torque sweet spot.
Technical Fitting Schematic: M22-14mm Male
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Champion Power Equipment 100778.

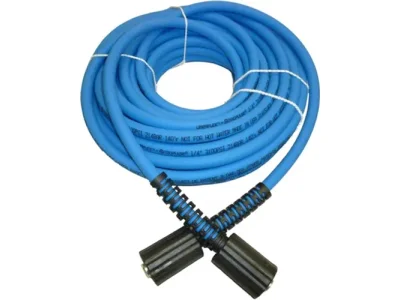

UberFlex 50ft 3/8" Hose
Eliminates stiff coil memory and reduces pressure drop.

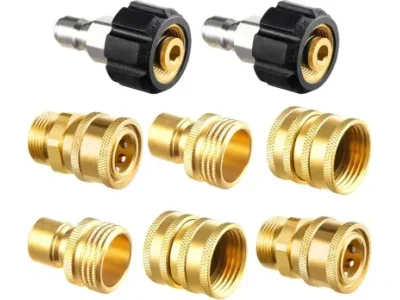

M22-14mm to 3/8" Stainless QC Kit
Quick snap-on convenience.
Field Diagnostics & Real-World Troubleshooting: Champion Power Equipment 100778
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
Tear down a Champion 100778, and you'll run straight into a persistent fuel leak at the gas tank petcock. The stock rubber tank grommet softens and develops hairline splits after a few months of exposure to E10 pump gas. Raw fuel weeps down the frame tube right above the hot crankcase. Fix it permanently by pressing in a Viton (FKM) 33/64-inch fuel tank grommet coated with silicone grease before shoving the petcock barb home. Driveway slopes trigger another common field headache: false low-oil shutdowns. The 224cc Champion engine uses an internal magnetic float switch wired to the ignition coil. Park the machine on an 8-degree slope or let oil drop 50 ml low, and oil sloshes away from the sensor. Spark cuts out mid-pass. Keep the washer level while running, or fill the crankcase right up to the bottom threads of the fill plug.
The Annovi Reverberi (AR) axial cam pump puts out solid pressure, but its unloader assembly hates hard water. Mineral scale and heat flatten the unloader shuttle O-rings, causing bypass cycling—a distinct chug-chug shuddering noise every two to three seconds while idling off-trigger. Pop the unloader spindle, soak it in white vinegar to strip calcium scale, and seat fresh Viton O-rings to stop pressure hunting. On the engine side, overfilling the crankcase past the top dipstick mark lets the internal splash dipper whip 10W-30 oil into froth, blowing oil past the rings and carbon-fouling the Champion F6RTC spark plug. Gap the plug to 0.028–0.031 inches (0.7–0.8 mm). Converting the pump's male M22-14mm outlet to a 3/8-inch stainless steel quick-connect socket eliminates the thread galling that ruins stock aluminum fittings.
Frequently Asked Questions: Champion Power Equipment 100778
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Why is gasoline leaking from the bottom of my Champion 100778 fuel tank?
The factory rubber grommet sealing the shutoff valve petcock to the tank base has rotted from ethanol. Drain the tank, pop out the shutoff valve, and press in an ethanol-proof Viton (FKM) 33/64-inch rubber grommet to permanently cure the fuel leak.
Why does my Champion 100778 shut off when moved to an inclined driveway?
The engine's low-oil float sensor is grounding out the ignition circuit. Parked on an angle, motor oil sloshes away from the sensor switch inside the 224cc crankcase, killing spark. Keep the machine on level ground while washing and make sure 10W-30 oil touches the bottom threads of the fill hole.
What hose adapter do I need to add quick connects to the Champion 100778?
Thread an M22-14mm female to 3/8-inch quick-connect brass socket onto the pump outlet, and fit an M22-14mm female to 3/8-inch plug on your hose. The Champion 100778 uses standard 14mm stem pins, so standard aftermarket M22-14mm adapter kits thread on without leaking.
Why is my Champion pressure washer pulsing when I am not spraying?
Rapid cycling while idling off-trigger means line pressure is bleeding off or the unloader shuttle O-rings are worn. Check the spray gun valve and hose connections for tiny drips, and soak the AR pump unloader valve in vinegar to clean off mineral buildup.
Can the Champion 100778 draw water from an unpressurized rain barrel?
No, the axial cam pump on this unit cannot self-prime from a static barrel or tank. It requires a pressurized spigot feeding at least 20 to 30 PSI and 3.5 GPM to prevent destructive pump cavitation and dry-seal friction.
