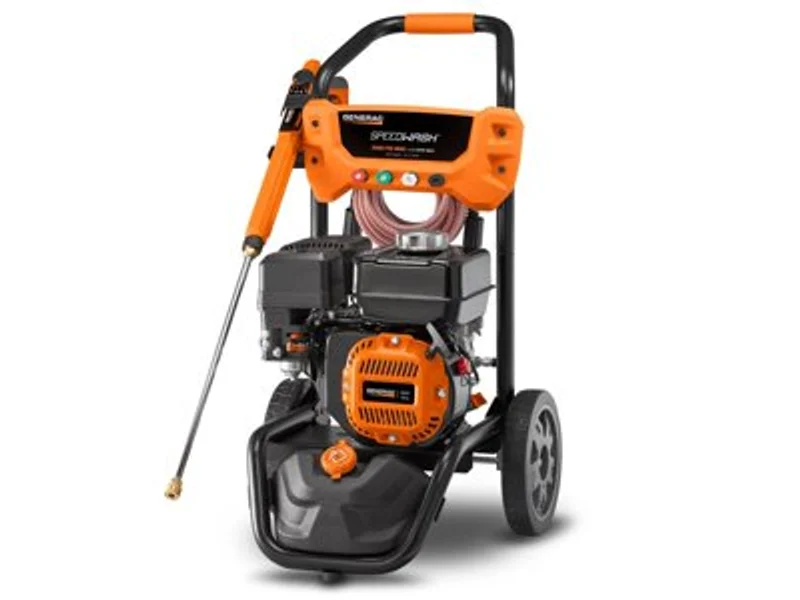

Generac Power Systems SpeedWash 7122 Fitting Size & Compatibility Guide
Standard M22-14mm male outlet.
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard universal M22-14mm hoses (like UberFlex) screw directly onto your machine pump with zero adapters needed.
Foam Cannon Suction
1.25mm Orifice Jet
Snubby Detailing Gun
Aftermarket snubby guns with M22-14mm female inlets screw directly onto your stock or aftermarket hose.
Surface Cleaner Deck
Maximum recommended deck diameter: 12" to 15" Deck based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 3200 PSI | 2800 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 2.7 GPM | 2.5 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 4.08 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | Generac 196cc OHV Engine with PowerDial Spray Gun | ||
| Pump Outlet Thread | M22-14mm Male | Inner stem caliper pin: 14.0mm | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 30 ft (1/4" ID High-Flex Hose) | Hose Ends: M22-14mm Female | |
| Spray Wand Outlet | 1/4" Quick-Connect | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
Rating this 196cc machine at 3,200 PSI and 2.7 GPM is classic marketing overreach. Pushing that volume at that pressure equals 5.04 Water HP ((3,200 × 2.7) / 1,714)—which would stall a 196cc single cold. On the Concrete dial setting with a #3.0 nozzle, expect an honest 2,750 to 2,800 working PSI at 2.4 GPM.
Technical Fitting Schematic: M22-14mm Male
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Generac Power Systems SpeedWash 7122.

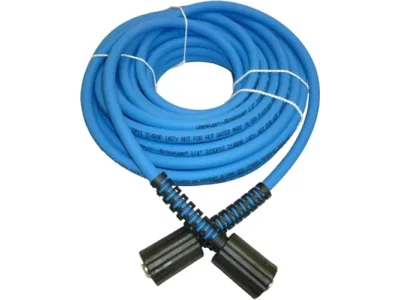

UberFlex 50ft 3/8" Hose
Extends cleaning radius beyond the 30ft stock hose.

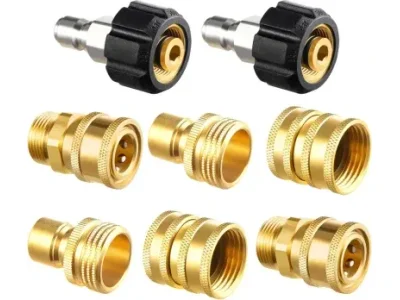

M22-14mm to 3/8" Stainless QC Kit
Quick snap-on attachment for pump and gun.

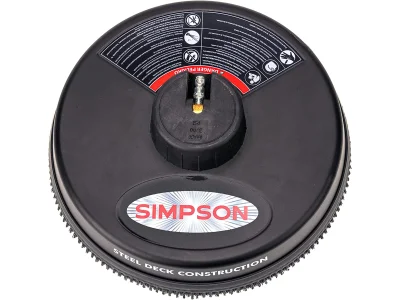

15" Surface Cleaner
Cleans concrete without tiger striping.
Field Diagnostics & Real-World Troubleshooting: Generac Power Systems SpeedWash 7122
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
If pulling the recoil cord on a Generac SpeedWash 7122 feels like trying to yank a boulder, don't jump to conclusions about a seized pump. It's almost always exhaust valve lash drift. The 196cc OHV camshaft uses a mechanical compression release tab that bumps the exhaust valve slightly open during cranking. When cold exhaust valve lash widens past 0.006 inches, that cam tab misses the rocker arm completely. You end up pulling against full 8.5:1 compression plus hydraulic water lock in the pump head. Pull the stamped valve cover, set the flywheel magnets to Top Dead Center on the compression stroke, and adjust the rocker jam nuts to 0.004 inches on the intake valve and 0.006 inches on the exhaust valve using a flat feeler gauge.
The PowerDial spray gun houses an internal rotating brass ball with four calibrated flow ports for Car, Wood, Concrete, and Soap. Silt and abrasive grit from garden hoses score the internal PTFE valve seats. Pressurized water starts leaking around the dial housing, dumping 300+ PSI of cleaning punch. Teardown the plastic gun shell, clean out grit, and replace the internal quad-rings, or ditch the dial wand for a standard commercial spray gun with an M22-14mm inlet. If the onboard soap tank stops pulling detergent, check the bottom tank siphon valve. A 3/16-inch stainless steel check ball and spring sit inside the tank barb. Thick wash detergents dry out during storage, gluing the ball fast to its plastic seat. Squirt warm water mixed with 10% white vinegar directly down the chemical barb with an oral syringe to dissolve dried soap crust and pop the check ball free.
Frequently Asked Questions: Generac Power Systems SpeedWash 7122
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Why is the pull cord on my Generac SpeedWash 7122 impossible to pull?
Trapped water pressure in the pump or excessive exhaust valve lash is disabling the compression release. Squeeze the spray gun trigger to dump line pressure while pulling the cord. If it stays stiff, adjust exhaust valve lash to 0.006 inches so the camshaft compression release lobe can crack the valve open.
Why is water leaking around the PowerDial on my Generac spray gun?
Internal PTFE ball seals or O-rings inside the PowerDial housing have worn out or collected dirt particles. Disassemble the gun shell to flush out grit and install fresh quad-rings, or swap the wand for a standard commercial spray gun using standard 1/4-inch quick-connect tips.
Why will my Generac 7122 not draw soap from the onboard detergent tank?
The chemical check ball is glued shut with dried soap residue or you're running a high-pressure nozzle setting. You must select the Soap setting or click in a low-pressure black nozzle to drop line pressure below 250 PSI for venturi suction. If it still won't siphon, flush the tank barb with hot water and vinegar.
What hose connections does the Generac SpeedWash 7122 use?
The Generac 7122 uses standard M22-14mm threaded connections with a 14.0mm inner pin on both the pump outlet and the spray gun inlet. Standard commercial aftermarket hoses and quick-connect adapter sets fit directly without proprietary adapters.
What is the true working output of the Generac 7122?
The 196cc engine and axial pump deliver a continuous working output of 2,800 PSI at 2.4 GPM when the PowerDial is turned to the Concrete setting. That puts out 3.92 Water HP ((2,800 × 2.4) / 1,714), which is plenty for aggregate driveways, brick walkways, and siding.
