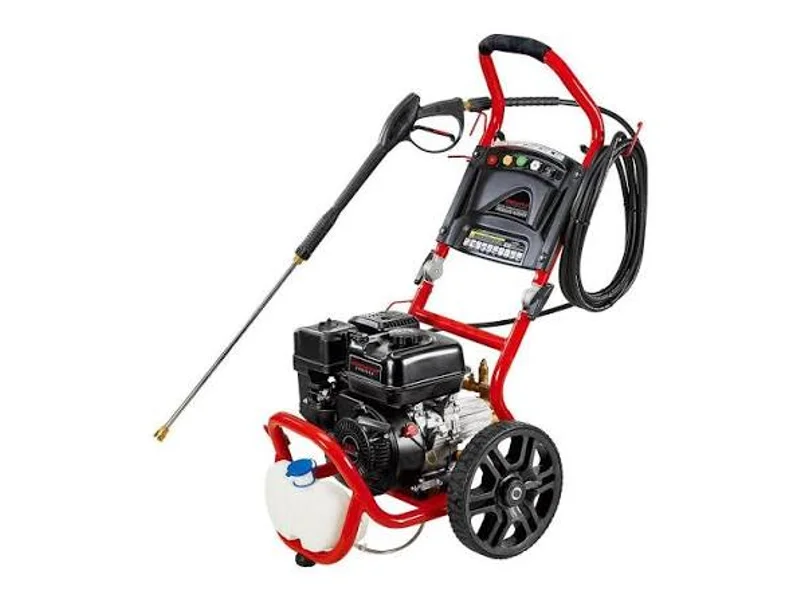

Harbor Freight Predator 3200 (SKU 71100) Fitting Size & Compatibility Guide
Standard M22-14mm male outlet. Fully compatible with universal aftermarket hoses.
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard universal M22-14mm hoses (like UberFlex) screw directly onto your machine pump with zero adapters needed.
Foam Cannon Suction
1.25mm Orifice Jet
Snubby Detailing Gun
Aftermarket snubby guns with M22-14mm female inlets screw directly onto your stock or aftermarket hose.
Surface Cleaner Deck
Maximum recommended deck diameter: 12" to 15" Deck (4 × 2.4 = 9.6 in ideal) based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 3200 PSI | 2700 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 2.8 GPM | 2.4 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 3.78 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | Predator 212cc 6.5 HP 4-Stroke OHV Engine | ||
| Pump Outlet Thread | M22-14mm Male | Inner stem caliper pin: 14.0mm | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 25 ft (1/4" ID) | Hose Ends: M22-14mm Female | |
| Spray Wand Outlet | 1/4" Brass Quick-Connect Coupler | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
Harbor Freight advertises 3,200 PSI, but that's absolute deadhead burst pressure measured at the pump head with zero flow. In the real world, the 212cc Predator delivers 2,700 true working PSI at 2.4 GPM. That works out to 3.78 Water Horsepower—plenty of punch for driveways and siding when paired with a matching 10-inch to 12-inch surface cleaner.
Technical Fitting Schematic: M22-14mm Male
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Harbor Freight Predator 3200 (SKU 71100).
UberFlex 50ft 3/8" 3400 PSI Hose
Dramatically reduces line pressure drop and eliminates kinks.
Stainless M22-14mm to 3/8" QC Set
Converts screw-on hose to instant snap-on couplings.
15" Stainless Steel Surface Cleaner
Cleans concrete and patios evenly at 2.4 GPM.

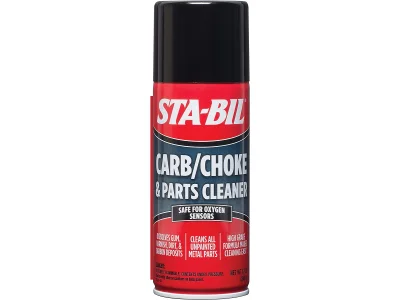

Predator 212cc / GX200 Replacement Carburetor Kit
Fixes surging and engine running only on choke caused by stale fuel.
Field Diagnostics & Real-World Troubleshooting: Harbor Freight Predator 3200 (SKU 71100)
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
Crack open the stock Ruixing carburetor on a sputtering Predator 3200, and you'll find the culprit every time: dried ethanol gum. Over 70% of running problems trace back to pump gas sitting in the float bowl for just a month. Modern E10 fuel separates into alcohol and water, leaving gummy green varnish inside the tiny 0.018-inch idle pilot jet and #68 main jet. The engine starts hunting rhythmically, surges under trigger pull, and dies the second you open the choke. Cleaning it requires dropping the 10mm bowl nut, popping out the brass main jet and emulsion tube, and gently clearing the tiny pilot jet tucked under the plastic idle speed screw using a copper wire strand and aerosol carb cleaner.
The other big jobsite headache is random engine cut-out on sloped driveways. The 212cc Predator uses an internal low-oil magnetic float switch wired straight to the ignition coil kill wire. When washing on an incline, engine vibration and tilting slosh oil away from the float, grounding the spark circuit mid-pass. If your Predator dies suddenly despite showing oil on the dipstick, check the crankcase on dead-level ground. That oil needs to sit right at the very brim of the fill threads. If it still cuts out on slopes, trace the yellow wire coming out of the front crankcase and disconnect the bullet connector to verify if the float switch is causing false trips.
The axial cam pump runs directly at 3,400 RPM on the 3/4-inch engine output shaft. A wobble plate pushes three spring-returned stainless pistons through high-pressure seals inside an aluminum head. This axial pump holds only 2 to 3 ounces of sealed factory lubricant and has no drain plug. Letting the washer idle in bypass cooks that tiny oil reservoir in minutes, tearing up the swash plate thrust bearing. When that bearing seizes, it shears the shaft key and wipes out the pump. Treat this pump right: keep bypass idling under 60 seconds, run a 40-mesh inlet screen, and swap the stiff stock 1/4-inch PVC hose for a flexible rubber line with M22-to-3/8-inch quick disconnects.
Frequently Asked Questions: Harbor Freight Predator 3200 (SKU 71100)
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Why will my Predator 3200 pressure washer only run with the choke halfway closed?
The idle pilot jet or emulsion tube inside the Ruixing carburetor is clogged with dried ethanol varnish. Half-choke restricts incoming air to match the choked fuel feed. Drop the 10mm carburetor float bowl, remove the brass main jet and emulsion tube, and clean every micro-orifice with aerosol carb cleaner and fine wire.
Why does my Predator 3200 engine randomly shut off when washing a sloped driveway?
The internal low-oil float switch inside the 212cc crankcase sloshes on steep angles, grounding out the ignition coil spark. Park the washer on dead-level ground and top the oil up until it rests on the lip of the fill neck (0.5 quart 10W-30). If it still cuts out, unplug the yellow sensor bullet connector behind the switch to test.
Can I replace the axial pump on the Predator 3200 if it loses pressure?
Yes, the Predator 212cc engine has an industry-standard 3/4-inch horizontal keyed crankshaft with a universal 4-bolt pattern. Any universal replacement axial cam or small triplex pump built for 3/4-inch horizontal shafts bolts on in 20 minutes. It's a cheap, easy swap that saves buying a whole new machine.
What size surface cleaner works best with the Predator 3200 without leaving streaks?
Stick with a 10-inch to 12-inch surface cleaner. True working flow on this machine is 2.4 GPM, and following the golden rule (4 inches of deck diameter per 1.0 GPM) caps your deck size at 12 inches. Running a 15-inch surface cleaner splits flow too thinly, causing nozzle stall and leaving dirty zebra stripes.
How do I convert the Predator 3200 hose connections to quick-connect fittings?
Thread an M22-14mm female to 3/8-inch female quick-connect socket onto the pump outlet, and crimp or screw an M22-14mm male to 3/8-inch plug onto your hose. This eliminates tedious metric hand-twisting and stops you from accidentally cross-threading the pump's aluminum outlet.
