Harbor Freight Predator 4400 (SKU 64931 / 71102) Fitting Size & Compatibility Guide
Factory 3/8" QC female coupler on pump manifold.
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard universal M22-14mm hoses (like UberFlex) screw directly onto your machine pump with zero adapters needed.
Foam Cannon Suction
1.25mm to 1.35mm Orifice Jet
Snubby Detailing Gun
Aftermarket snubby guns with M22-14mm female inlets screw directly onto your stock or aftermarket hose.
Surface Cleaner Deck
Maximum recommended deck diameter: 16" to 20" Commercial Surface Cleaner (4 × 4.0 = 16.0 inches) based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 4400 PSI | 4000 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 4.2 GPM | 4 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 9.33 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | Predator 420cc 13 HP 4-Stroke OHV Engine | ||
| Pump Outlet Thread | 3/8" Quick-Connect Female Coupler | Inner stem caliper pin: 3/8" Snap-Lock | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 50 ft (3/8" ID Wire-Braided Commercial Hose) | Hose Ends: 3/8" QC Plug to 3/8" QC Coupler | |
| Spray Wand Outlet | 1/4" Brass Quick-Connect Coupler | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
Harbor Freight markets this beast at 4,400 PSI, but continuous working output settles right at 4,000 true PSI at 4.0 GPM. Driven by the 420cc 13 HP engine, it churns out 9.33 Water Horsepower ((4,000 × 4.0) / 1,714). It delivers legitimate commercial-grade cleaning force at half the price of big-brand contract rigs.
Technical Fitting Schematic: 3/8" Quick-Connect Female Coupler
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Harbor Freight Predator 4400 (SKU 64931 / 71102).
16" Commercial Stainless Surface Cleaner
Optimal 4-in-per-GPM speed match for flatwork.

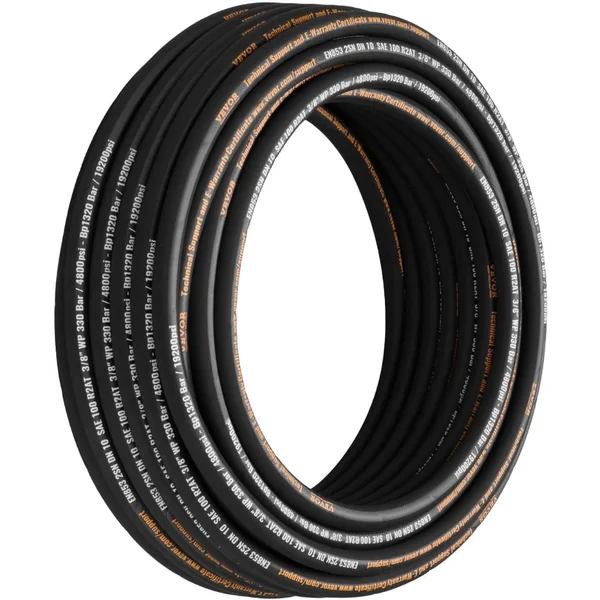

VEVOR Hydraulic Hose 3/8 Inch x 100 Ft (4,800 PSI Working Pressure)
Provides complete jobsite coverage without dragging machine.

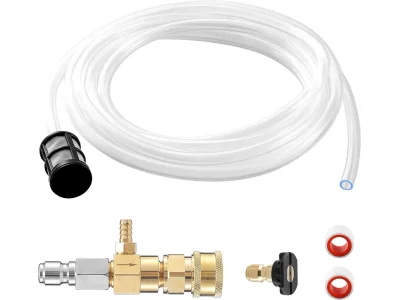

High-Draw Downstream Chemical Injector Kit
Applies sodium hypochlorite without passing through triplex pump.
Field Diagnostics & Real-World Troubleshooting: Harbor Freight Predator 4400 (SKU 64931 / 71102)
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
Pull the dipstick on a high-hour Predator 4400 triplex pump, and the first warning sign is milky white cappuccino oil. That's emulsified water, and it's a death sentence for the crankcase bearings. The triplex pump manifold houses three ceramic-sleeved plungers sealed by high-pressure V-packings and low-pressure oil seals. When operators let the trigger snap shut from full throttle without cushioning the shock, hydraulic water hammer spikes past 4,800 PSI. That blast forces water past the water seals, down the ceramic plunger shafts, and straight into the crankcase. Check the glass oil sight glass before every single job. If the oil turns milky, pull the drain plug immediately, flush with mineral oil, install a fresh packing kit, and refill with non-detergent ISO 68 pump oil.
Starting this 420cc big-block demands proper technique, or it will snatch your shoulder. A 420cc cylinder creates massive swept volume, and if water pressure stays locked in the pump head, the pull rope won't budge. Yanking hard on a hydro-locked starter cord will snap the rope or shear the nylon starter pawls. Always hold the spray gun trigger wide open while pulling the recoil. If the engine still kicks back violently with the trigger held open, check your valve lash. Cold clearance must be set to 0.006 inches on the intake and 0.008 inches on the exhaust. Loose valve lash stops the mechanical compression release lobe from cracking the exhaust valve open during cranking, locking the engine up tight.
Tuning the unloader valve makes or breaks this machine. Weekend warriors often make the rookie mistake of cranking the black unloader knob down solid like a throttle, hoping for 4,500+ PSI. Don't do it. Bottoming out the unloader spring blocks the bypass passage entirely, meaning when you let go of the trigger, pressure has nowhere to go. It hammers the pump crankcase and snaps connecting rods. To calibrate it properly, plumb a 0-5,000 PSI liquid-filled pressure gauge between the pump outlet and hose. Pull the trigger full open and turn the knob clockwise just until operating pressure hits 4,000 PSI with a #4.0 orifice. Release the trigger; the pressure spike should never jump more than 300 to 400 PSI. Spin the jam nut tight and lock it there.
Frequently Asked Questions: Harbor Freight Predator 4400 (SKU 64931 / 71102)
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Why has the oil in my Predator 4400 pump crankcase turned milky white?
High-pressure packing seals have failed, letting water leak down the ceramic plungers and contaminate the crankcase oil. Drain the milky sludge immediately, install a fresh packing seal and oil seal kit, and refill with non-detergent ISO 68 pump oil. Running on milky oil destroys the crankshaft and connecting rods within hours.
Why does the recoil rope jerk back violently when starting the Predator 4400?
Trapped line pressure causes hydraulic lock, or your engine valve lash is out of spec. Always squeeze the spray gun trigger to bleed pressure while cranking. If it still kicks back, set cold valve lash on the 420cc engine to 0.006 inches intake and 0.008 inches exhaust so the compression release cam can function.
What size surface cleaner can I run on the Predator 4400?
Run a 16-inch to 20-inch commercial surface cleaner. The Predator 4400 produces 4.0 true GPM, perfectly matching the 4-inch-per-GPM standard (4.0 × 4 = 16-inch optimal deck). Install two #2.0 nozzles on the spray bar to match the 4.0 orifice total, keeping pressure pinned at 4,000 PSI without bogging the engine.
How do I correctly adjust the unloader valve on the Predator 4400 without blowing seals?
Plumb a 5,000 PSI test gauge into the pump outlet, pull the spray trigger, and turn the unloader knob clockwise only until working pressure reaches 4,000 PSI. Release the trigger and watch the bypass needle jump; it should spike no more than 300 to 400 PSI. Lock the jam nut down tight at that exact position.
Why does my Predator 4400 run smoothly for 15 minutes and then abruptly stall?
Your fuel cap vent is clogged, creating a vacuum lock inside the tank that starves the carburetor. Loosen the gas cap when the engine begins bogging down; if it instantly revs back up, poke the cap breather valve clear. If fuel flow isn't the problem, inspect the yellow low-oil sensor lead for vibration shorts.
