Ryobi RY142300 Fitting Size & Compatibility Guide
Unlike older brushed Ryobi models that occasionally used 15mm, the brushless RY142300 uses standard M22-14mm!
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard universal M22-14mm hoses (like UberFlex) screw directly onto your machine pump with zero adapters needed.
Foam Cannon Suction
1.1mm Orifice Jet (Essential upgrade! Stock 1.25mm produces watery foam at 1.15 GPM)
Snubby Detailing Gun
Aftermarket snubby guns with M22-14mm female inlets screw directly onto your stock or aftermarket hose.
Surface Cleaner Deck
Maximum recommended deck diameter: 10" Deck (exceeding 10" causes rotor stall) based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 2300 PSI | 1500 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 1.2 GPM | 1.15 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 1.01 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | 13-Amp Brushless Induction Motor | 120V / 13A AC, 60 Hz (35ft GFCI Cord) | |
| Pump Outlet Thread | M22-14mm Male | Inner stem caliper pin: 14.0mm | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel (Female) | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 25 ft (1/4" ID Non-Marring PVC) | Hose Ends: M22-14mm Female to M22-14mm Female | |
| Spray Wand Outlet | 1/4" Brass Quick-Connect Coupler | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
Ryobi claims 2,300 PSI on the box, but you won't see that on a live pressure gauge. In real use, working pressure stabilizes at 1,500 PSI at 1.15 GPM, producing 1.01 Water HP via (1,500 × 1.15) / 1,714. The 2,300 PSI number is simply a momentary zero-flow spike logged just before the unloader dumps water into bypass.
Technical Fitting Schematic: M22-14mm Male
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Ryobi RY142300.

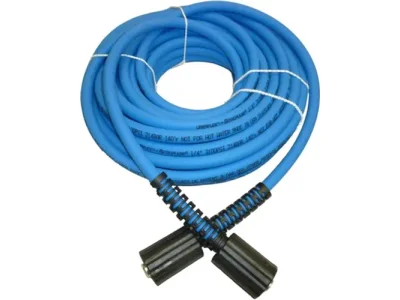

ProPulse UberFlex 50ft 1/4" 3100 PSI High-Flex Hose
Replaces the stiff, springy stock PVC hose that constantly coils and kinks.

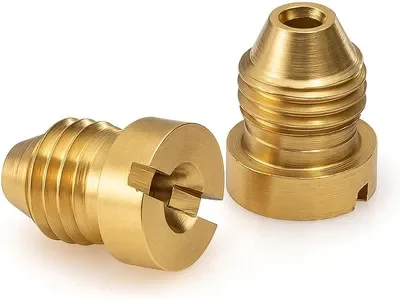

1.1mm Foam Cannon Orifice Jet Screw Upgrade
Converts weak, runny soap foam into thick shaving-cream clinging suds at 1.15 GPM.
Stainless Steel M22-14mm to 3/8" QC Adapter Set
Allows 1-second snap connect of hose to pump and gun without hand-tightening threads.

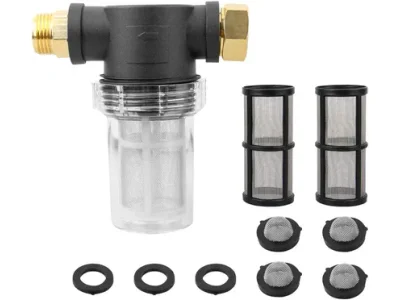

3/4" Inline Garden Hose Inlet Filter (40-Mesh)
Protects pump wobble-plate and unloader valve from pipe sediment.
Field Diagnostics & Real-World Troubleshooting: Ryobi RY142300
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
The RY142300 stands out because it ditches carbon motor brushes for a brushless AC induction motor managed by an electronic inverter drive module. Tear it down, and you'll find the inverter board potted in heat-conductive epoxy inside a finned aluminum heat sink right behind the stator. That board monitors motor phase currents, rotor speed, and line voltage. Plug this unit into a flimsy 100-foot extension cord, and line voltage drops below 108V under a 13-amp load. That triggers an undervoltage fault, and the controller cuts power to protect the inverter MOSFETs from frying. Squeezing the trigger won't clear the fault. You have to perform an inverter lockout reset: flip the main switch off, yank the GFCI plug for 60 seconds to bleed the DC bus capacitors, and let the board reset.
Down at the wet end, the aluminum axial cam pump feeds an onboard detergent tank and low-pressure chemical siphon. When customers say soap won't pull, the problem is almost always a stuck soap siphon check ball. Car wash soaps dry out inside the brass barb, cementing the 3/16″ stainless check ball to its rubber seat. Unthread the chemical barb, soak the check assembly in hot white vinegar to dissolve the crust, and blow it clean with air to restore automatic suction. The stock rotating turbo nozzle takes a beating too. Hard-water scale and sand particles wedge inside the brass cavity, locking the ceramic rotor cone and turning the spray into a dangerous zero-degree jet. A quick 30-minute soak in vinegar frees the rotor bearing and brings the swirl pattern right back.
Frequently Asked Questions: Ryobi RY142300
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Why does my Ryobi RY142300 suddenly shut off and not restart?
The electronic inverter module triggered an undervoltage or thermal protection lockout. Remove any extension cords, plug straight into a 120V 15A or 20A wall receptacle, toggle the power switch off, and unplug the GFCI cord for 60 seconds to perform an inverter lockout reset.
Does the Ryobi RY142300 take M22-14mm or M22-15mm hose fittings?
The RY142300 uses standard M22-14mm threaded connections on both the pump outlet and gun handle with a 14.0mm inner stem pin. While older brushed Ryobi units used proprietary 15mm collars, this brushless model connects cleanly to standard 14mm aftermarket hoses and quick-disconnect plugs.
Why will my Ryobi RY142300 not pull detergent from the soap tank?
Chemical draw requires the black low-pressure spray tip; high-pressure tips build line backpressure that closes the Venturi check valve. If the black tip is on and soap still won't draw, unthread the siphon barb from the pump and free the soap siphon check ball from dried chemical crust.
Why is my Ryobi turbo nozzle spraying a pencil jet instead of spinning?
The internal ceramic rotor has jammed against its bearing race from mineral scale or grit. Tap the nozzle head lightly against the ground while spraying to free the rotor, or soak the nozzle assembly in warm vinegar for 30 minutes to dissolve calcium deposits.
What is the true working pressure of the Ryobi 2300 PSI brushless model?
Dynamic working pressure settles around 1,500 PSI at 1.15 GPM under normal washing, producing 1.01 Water Horsepower. The advertised 2,300 PSI rating is just a momentary zero-flow pressure spike captured by lab gauges right before the unloader valve cycles into bypass.
