Simpson Cleaning ALH4240 Fitting Size & Compatibility Guide
Factory 3/8" QC female coupler screwed into CAT 3/8" NPT discharge port.
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard universal M22-14mm hoses (like UberFlex) screw directly onto your machine pump with zero adapters needed.
Foam Cannon Suction
1.25mm to 1.35mm Orifice Jet
Snubby Detailing Gun
Aftermarket snubby guns with M22-14mm female inlets screw directly onto your stock or aftermarket hose.
Surface Cleaner Deck
Maximum recommended deck diameter: 16" to 20" Commercial Surface Cleaner based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 4200 PSI | 4000 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 4 GPM | 4 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 9.33 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | Honda GX390 389cc Commercial Engine | ||
| Pump Outlet Thread | 3/8" Quick-Connect Female Coupler | Inner stem caliper pin: 3/8" Snap-Lock | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 50 ft (3/8" ID Steel-Braided Monster Hose) | Hose Ends: 3/8" QC Plug to 3/8" QC Coupler | |
| Spray Wand Outlet | 1/4" Brass Quick-Connect Coupler | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
Simpson labels the ALH4240 at 4,200 PSI, but real-world commercial washing settles at 4,000 continuous working PSI at 4.0 GPM. Backed by the bulletproof CAT 67DX pump and Honda GX390, that translates to 9.33 Water Horsepower. It's a genuine industrial rig built for daily commercial service, not a weekend homeowner toy.
Technical Fitting Schematic: 3/8" Quick-Connect Female Coupler
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Simpson Cleaning ALH4240.

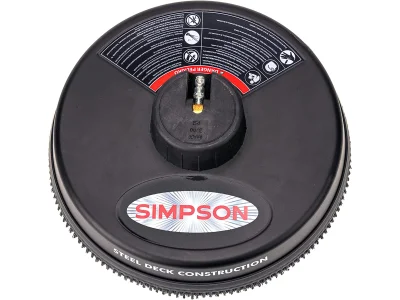

16" Commercial Stainless Steel Surface Cleaner
Precision-matched to 4.0 GPM flow for commercial flatwork cleaning.

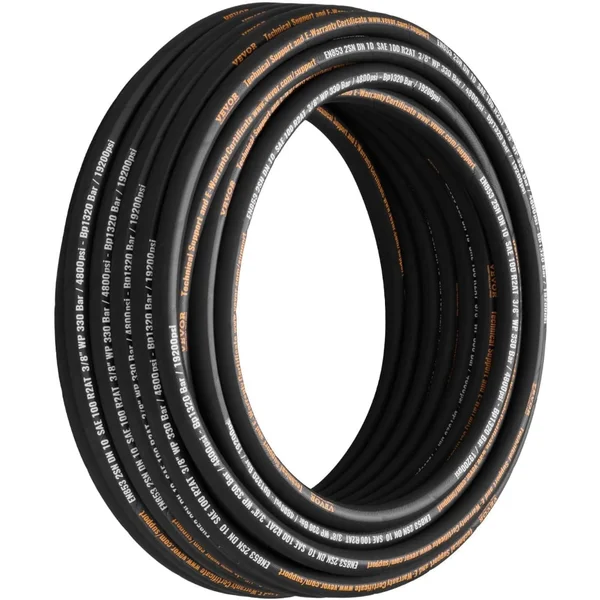

VEVOR Hydraulic Hose 3/8 Inch x 100 Ft (4,800 PSI Working Pressure)
Professional length prevents machine repositioning during jobs.

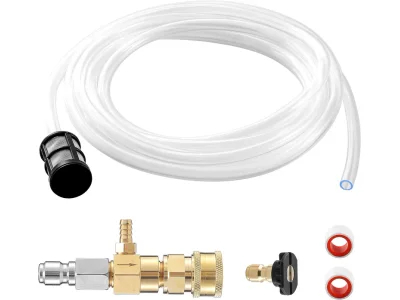

High-Draw Downstream Chemical Injector Kit
Safely draws SH and detergents without corroding the CAT pump manifold.

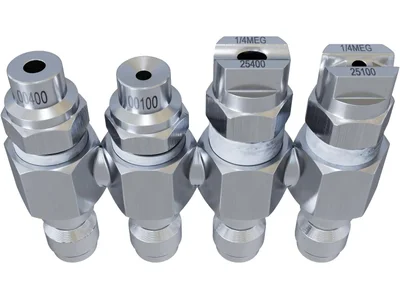

J-Rod 4-Way Soft Wash Tip Holder
Fast nozzle switching for commercial house washing.
Field Diagnostics & Real-World Troubleshooting: Simpson Cleaning ALH4240
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
Drop the manifold on the ALH4240's CAT 67DX39G1I pump, and you'll see why contractors love it: solid ceramic plungers, forged brass head, and dual concentric V-packings rated for 1,000+ hours. But solid alumina ceramic has one fatal Achilles' heel. It hates thermal shock. Ceramic handles massive compressive forces with ease, but sudden temperature swings crack it instantly. If you let the engine idle while moving surface cleaners, water inside the bypass loop boils past 140°F. Pull the trigger, and a blast of 55°F ground water hits those roasting plungers. Snap. The ceramic fractures into jagged shards, chewing through your V-packings and scoring the oil seals. If you're pausing for more than a minute, kill the engine, or bypass the unloader return straight back to a buffer tank.
The aircraft-grade aluminum frame shaves total weight to 125 pounds and stops rust dead in its tracks. That's a godsend when you're spraying caustic sodium hypochlorite mix on house washes. But aluminum doesn't absorb vibration like heavy structural steel. The 389cc single-cylinder Honda GX390 shakes at 3,400 RPM, and that high-frequency buzz works engine mounting bolts loose within 50 to 100 hours. We constantly find wallowed bolt holes on work trucks. Check your engine mounting bolts monthly. Toss the factory split washers, slip in hardened Nord-Lock wedge washers, and torque down Grade 8 Stover locknuts with medium-strength blue threadlocker.
Fluid dynamics matter at 4 GPM. Pushing 4,000 PSI at 4.0 GPM demands 9.33 Water Horsepower ((4,000 × 4.0) / 1,714). Run that through a standard 50-foot 3/8-inch high-pressure hose, and Darcy-Weisbach friction loss drops line pressure by roughly 120 PSI—completely normal. But step down to a skinny 1/4-inch whip line or feed the inlet with a squished 5/8-inch hose, and you choke the CAT pump. Cavitation will erode the low-pressure seal retainers and pit valve seats. Check that oil sight glass weekly. If the oil looks like milky cappuccino sludge instead of clear amber, water is slipping past the low-pressure packing seals. Rebuild the seals before water destroys the crankshaft bearings.
Frequently Asked Questions: Simpson Cleaning ALH4240
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Why is the CAT 67DX pump on the ALH4240 better than standard triplex pumps?
The CAT 67DX uses solid ceramic plungers rather than cheap ceramic-coated steel sleeves that flake under grit. It features concentric high-density V-packings and forged brass manifolds engineered for over 1,000 hours of continuous commercial operation. It will outlast budget pumps three to one if properly maintained.
What causes the ceramic plungers in a CAT pump to crack or shatter?
Thermal shock destroys ceramic plungers. Leaving the machine idling in bypass heats manifold water past 140°F. When you pull the trigger, cold tap water shocks the hot ceramic, fracturing it into pieces. Never idle off-trigger for more than 60 seconds, or plumb an external bypass back to your supply tank.
Can I convert the ALH4240 unloader to an external bypass routed back to a buffer tank?
Yes, and it's the smartest reliability upgrade you can make for commercial washing. Unthread the internal bypass plug on the unloader, run a 3/8-inch high-pressure bypass hose back into your water tank, and plug the thermal relief port. This continuously circulates fresh, cool water through the pump head, completely eliminating heat buildup during trigger pauses.
Why are my ALH4240 engine mount bolts vibrating loose on the aluminum deck?
Aluminum lacks the heavy vibration-dampening mass of tubular steel, so the Honda GX390 single-cylinder harmonics back out standard bolts over time. Swap the factory hardware for Grade 8 bolts, hardened Nord-Lock wedge-locking washers, and Stover all-metal prevailing-torque locknuts with blue Loctite. Check them every 50 operating hours.
How do I winterize the CAT 67DX pump to avoid winter manifold cracking?
Thread a short garden hose funnel into the 3/4-inch pump inlet and pour in non-toxic RV propylene glycol antifreeze. Pull the starter rope gently until bright pink fluid pumps out of the 3/8-inch high-pressure outlet. Trapped plain water expands when freezing, which splits the forged brass manifold right down the valve casting.
