Sun Joe SPX3000 Fitting Size & Compatibility Guide
⚠️ CRITICAL 15mm STEM PIN! Standard universal M22-14mm hoses will leak violently because the 14mm stem cannot seat against the 15mm O-ring. An M22-15mm to 14mm adapter is required.
What Are You Trying to Connect?
Direct compatibility rules and recommended hardware for standard pressure washing upgrades.
Standard 50ft Hose
Standard 14mm replacement hoses require an M22-15mm to 14mm adapter to prevent violent water blowouts at the pump.
Foam Cannon Suction
1.1mm Orifice Jet (Required for thick foam at 1.25 GPM)
Snubby Detailing Gun
Short trigger guns with M22-14mm inlets require your hose conversion adapter or a dedicated 15mm coupler.
Surface Cleaner Deck
Maximum recommended deck diameter: 10" Deck (e.g., Sun Joe 10" surface cleaner) based on the 4-inches-per-GPM rule.
Engineering Specifications & True Working Pressure
Side-by-side analysis of manufacturer advertised marketing ratings vs. real-world dynamic flow physics.
| Specification Parameter | Advertised Factory Rating | True Dynamic Working Spec | Engineering Verification Details |
|---|---|---|---|
| Discharge Pressure | 2030 PSI | 1450 PSI | Advertised is static zero-flow peak; working spec is stabilized nozzle pressure. |
| Water Flow Rate | 1.76 GPM | 1.25 GPM | Measured at continuous operating load under standard atmospheric conditions. |
| Water Horsepower (WHP) | — | 1.06 WHP | Calculated via hydraulic equation: WHP = (PSI × GPM) / 1,714 |
| Motor / Engine Source | 14.5-Amp / 1,800-Watt Universal Motor | 120V / 14.5A AC, 60 Hz (35ft GFCI Cord) | |
| Pump Outlet Thread | M22-15mm Male | Inner stem caliper pin: 15.0mm | |
| Pump Water Inlet | 3/4" GHT Garden Hose Swivel Adapter | Standard North American garden hose thread with mesh intake filter. | |
| Stock Hose Dimensions | 20 ft (1/4" ID Plastic PVC) | Hose Ends: M22-15mm Female to M22-15mm Female | |
| Spray Wand Outlet | 1/4" Brass Quick-Connect Coupler | Standard quick-connect accepts universal spray tips and accessories. | |
Mechanical Engineering Verdict on Power & Performance
Don't buy into that "2030 Max PSI" badge on the box. That rating is a zero-flow spike pressure registered inside the pump head for a millisecond right as you release the gun trigger. Hook up a pressure gauge on your driveway with the stock #2.5 nozzle, and you'll see an honest 1,450 working PSI at 1.24 GPM (roughly 1.05 Water HP).
Technical Fitting Schematic: M22-15mm Male
Mechanical cross-section detailing the stem pin caliper diameter, Viton O-ring compression channel, and thread pitch.
Engineer's Plug-and-Play Upgrade Bill of Materials (BOM)
Field-tested, zero-leak hardware parts specifically matched to the Sun Joe SPX3000.

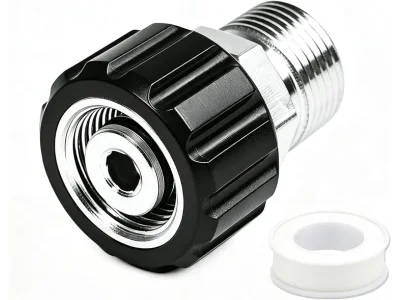

Twist M22-15mm Female to M22-14mm Male Brass Adapter
Mandatory adapter to connect standard universal hoses and short spray guns to Sun Joe's 15mm pump.
ProPulse UberFlex 50ft 1/4" Hose
Replaces stiff, unmanageable 20ft stock hose with professional 50ft kink-free line.
1.1mm Foam Cannon Orifice Jet Screw Upgrade
Essential for turning watery foam into dense foam at 1.25 GPM.
3/4" Inline Garden Hose Filter (40-Mesh)
Prevents municipal silt and debris from scoring delicate pump seals.
Field Diagnostics & Real-World Troubleshooting: Sun Joe SPX3000
Mechanical failure analysis and shop teardown solutions for common operating issues.
Shop Diagnostics & Service Notes
Tear into the SPX3000, and you'll immediately spot Sun Joe's biggest trap: proprietary fitting dimensions. Most pressure washers use standard M22-14mm fittings. Sun Joe machines their pump outlet with a 15.0mm snout. Try plugging a standard 14mm aftermarket hose straight in, and you're left with a loose 1.0mm gap leak around the stem pin. Water under 1,450 working PSI chews through the rubber O-ring in seconds, blasting pressurized spray out the threads and chewing up the soft cast aluminum housing. Thread an M22-15mm female to M22-14mm male brass adapter onto the pump outlet before you hook up commercial hoses.
Pop off the plastic clamshell case. Inside sits a 3-piston axial wobble plate pump bolted to a 14.5A universal brush motor. The Total Stop System (TSS) uses an unloader bypass pin to tap an internal SPDT microswitch every time you let off the trigger. If your garden hose can't push 2.5 GPM, or if air bubbles get trapped inside, the unloader starts chattering violently. That chatters the microswitch at 4 to 8 Hz. The resulting electrical arcing pits the copper contacts until the motor either sticks running continuously or refuses to switch on at all. Squeeze the spray gun trigger for 45 seconds with the power switch OFF to purge all trapped air before every wash.
Watch out for that factory plastic garden hose inlet adapter. Heavy 5/8-inch rubber hoses put sideways bending strain on it, stripping the soft nylon threads and pulling in air bubbles under negative pressure. That air starves the pump and triggers loud cavitation knocking. Ditch the plastic fitting on day one for a solid brass 3/4-inch GHT swivel coupler with a 40-mesh stainless steel filter screen. If you use the dual onboard soap tanks, flush them with clean warm water after every single wash. Leftover road-film soaps dry out, turning into crusty chemical deposits that freeze the internal stainless check ball against its seat.
Frequently Asked Questions: Sun Joe SPX3000
Quick mechanical answers for troubleshooting connections, leaks, and upgrades.
Why is water spraying violently from the pump hose connection on my Sun Joe SPX3000?
You plugged a standard M22-14mm hose onto Sun Joe's proprietary M22-15mm pump outlet. That 1.0mm difference in stem diameter leaves an unsealed gap that blows high-pressure water right past the threads. Thread an M22-15mm female to M22-14mm male brass adapter onto the pump snout first, and your leak is gone.
Why does my SPX3000 pulse on and off rapidly every few seconds when I release the trigger?
You have a tiny pressure leak somewhere in the line. A nicked O-ring on your lance, a dripping gun inlet, or a weeping unloader seat slowly bleeds off static line pressure. The Total Stop System (TSS) microswitch senses the pressure drop, fires the motor for a split second to repressurize the pump, and shuts off again. Inspect and grease your hose O-rings with silicone paste to seal the hydraulic loop.
Can I run the Sun Joe SPX3000 on an extension cord?
You really shouldn't. The 14.5-amp universal motor already pulls close to the 15A breaker limit (120V × 15A = 1,800W max). Running through a thin 16 AWG or 14 AWG cord causes voltage to plummet below 108V, causing motor amperage to spike until the thermal protector or your home breaker trips. If you must have extra reach, stick to a heavy 25-foot 12 AWG cord or simply add extra high-pressure hose.
Why won't my SPX3000 pull soap from the dual onboard detergent tanks?
You're running the wrong spray tip. The onboard chemical injector creates siphon vacuum only when line pressure drops below 250 PSI, which requires installing the black 65° brass soap nozzle. High-pressure colored tips generate too much backpressure, forcing the siphon check ball shut. If the black tip is on and soap still won't draw, poke a paperclip into the siphon tube to free the check ball from crusty dried soap.
What size foam cannon orifice works best with the SPX3000?
Swap out the stock 1.25mm orifice in your foam cannon for a 1.1mm jet. Because the SPX3000 flows a true 1.24 GPM at 1,450 PSI, a 1.25mm orifice bleeds off too much fluid velocity, leaving you with runny, watery lather. A 1.1mm orifice generates the exact Venturi pressure drop needed to whip up rich shaving cream foam without triggering the unloader into bypass.
