The Greenworks Pro 2300 is the clear winner for build quality, operating lifespan, and noise reduction due to its commercial-grade brushless induction motor and standard M22-14mm brass fittings. The Sun Joe SPX3000 remains a viable alternative strictly for budget-focused homeowners who want dual detergent tanks for light seasonal yard cleaning and do not plan to upgrade their hose or spray gun.
Quick Verdict: The Bottom-Line Decision
- Top Pick & Best Overall: Greenworks Pro 2300 — 14A TruBrushless induction motor, 1,750 real working PSI, quiet 74 dBA operation, wide steel roll-cage cart, and standard M22-14mm fittings that connect seamlessly to aftermarket accessories.
- Best Budget Alternative: Sun Joe SPX3000 — Sub-$170 price point, dual onboard soap tanks, and 1,450 real working PSI. Well suited for basic patio furniture cleaning if you do not mind high-pitched motor whine and proprietary M22-15mm fittings.
Mechanical Engineer's Note: The 120V Circuit Reality & Marketing PSI
Retail marketing teams frequently plaster inflated burst pressures on pressure washer packaging. Under North American electrical standards (NEC Article 210), a standard 15-amp residential circuit delivers a maximum continuous power envelope of:
Accounting for electric motor efficiency (75% to 80%) and positive-displacement pump efficiency (85%), available mechanical shaft power is realistically 1.5 to 1.8 HP. According to the fundamental hydraulic power equation:
Delivering a true continuous 2,300 PSI at 1.2 GPM requires exactly 1.61 Hydraulic HP, which pushes a 15-amp circuit near its thermal limit. The Sun Joe's advertised "2030 PSI" is a momentary static shut-off spike measured the millisecond the trigger closes. In continuous operation, the Sun Joe SPX3000 operates at roughly 1,450 working PSI, while the Greenworks Pro 2300 delivers approximately 1,750 working PSI.

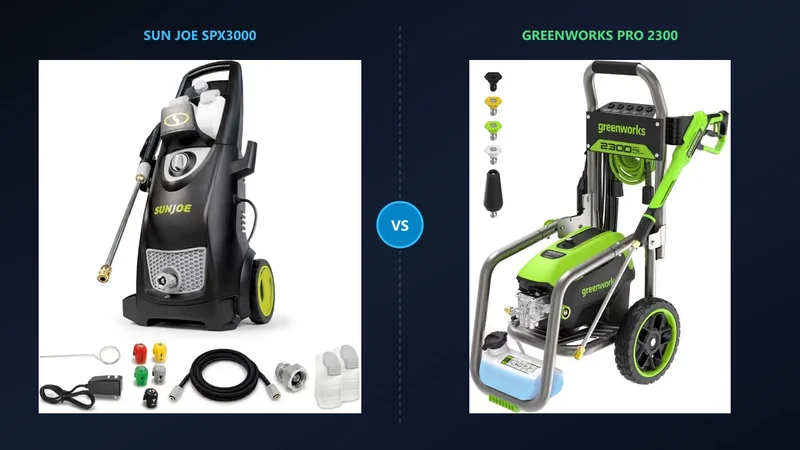

High-Intent Product Showcase
Before diving into the mechanical teardown, review the core specifications, build designs, and current pricing for both models:

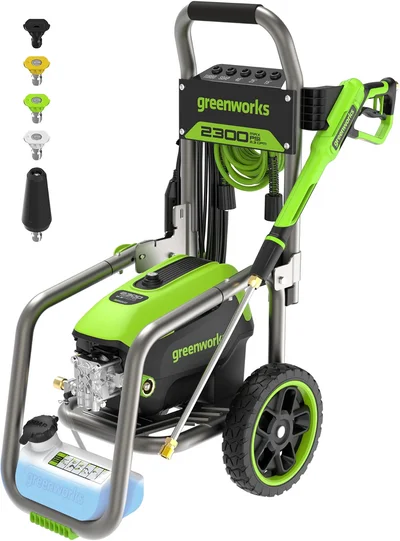

- 14A TruBrushless Induction Motor: 3x to 4x longer service life (400-600+ hours) with quiet 74 dBA operation.
- Heavy-Duty Axial Cam Pump: Cast-aluminum head with integrated thermal relief protection.
- Industry Standard M22-14mm Fittings: Direct compatibility with aftermarket hoses, stubby guns, and foam cannons.
- Rugged Steel Roll-Cage Frame: 10-inch flat-free wheels and wide stance prevent tip-overs during use.
- Smart Flow (JettFlow) Technology: 1.2 GPM high-pressure cleaning up to 2.3 GPM high-flow rinsing.

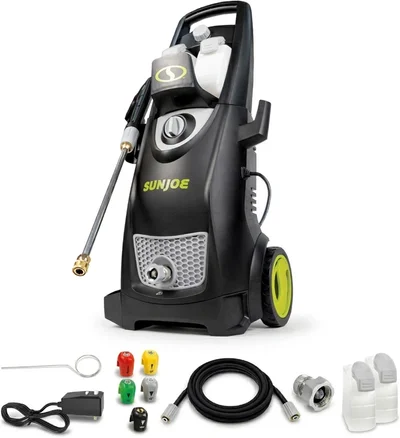

- 14.5A Universal Commutator Motor: 1,450 continuous working PSI at an accessible entry price.
- Dual Onboard Detergent Tanks: Two 0.9L tanks with dial selector to store two chemicals simultaneously.
- Total Stop System (TSS): Automatically shuts off the pump when the trigger is released to conserve energy.
- Lightweight Upright Form Factor: 24.3 lbs total net weight makes it easy to lift into trunks or sheds.
- Proprietary M22-15mm Fittings: Requires a brass 15mm-to-14mm adapter to use standard aftermarket hoses.
Engineering Feature Matrix: Side-by-Side Comparison
To evaluate these two machines accurately, compare their measured mechanical parameters rather than retail carton headlines:
| Engineering Metric | Sun Joe SPX3000 | Greenworks Pro 2300 | Engineering Verdict |
|---|---|---|---|
| Motor Architecture | Universal Motor (Carbon Brushes) | TruBrushless Induction Motor | Greenworks: Zero brush friction, cooler run temp, 3x longer duty cycle. |
| Pump Configuration | Wobble Plate (Swash Plate) | Axial Cam with Thermal Bypass | Greenworks: Cast-aluminum head dissipates internal fluid heat better. |
| Working Pressure (Tested) | 1,450 PSI (2030 PSI Peak Spike) | 1,750 PSI (2300 PSI Certified) | Greenworks: +300 PSI higher continuous stripping power at nozzle. |
| Discharge Flow Rate | 1.20 GPM Fixed | 1.20 GPM (Up to 2.3 GPM JettFlow) | Greenworks: High-flow mode rinses soap foam twice as fast. |
| Effective Cleaning Units (CU) | 1,740 Real CU | 2,100 to 2,310 Real CU | Greenworks: Delivers 25% to 32% faster total square-footage cleaning. |
| Discharge Hose Fitting | M22-15mm (Proprietary Stem) | M22-14mm (Industry Standard) | Greenworks: Connects to commercial hoses, wands, and foam guns without adapters. |
| Operating Noise Level | 86 dBA (High-Pitched Whine) | 74 dBA (Low Electric Hum) | Greenworks: Conversational volume; does not disturb neighbors. |
| Expected Service Life | 100 to 150 Operating Hours | 400 to 600+ Operating Hours | Greenworks: Induction motor outlasts brush-style motors by years. |
| Chassis & Mobility | Plastic Upright Cart (24.3 lbs) | Steel Roll-Cage Frame (41.2 lbs) | Tie: Sun Joe is easier to lift; Greenworks will not topple when tugged. |
| Discharge Hose Material | 20 ft Stiff Plastic PVC | 25 ft Kink-Resistant Rubber Blend | Greenworks: Far more flexible; Sun Joe hose curls persistently. |
| Detergent System | Dual 0.9L Tanks with Dial | Single 1.0L Integrated Tank | Sun Joe: Switch between wash soap and degreaser without emptying. |
| Amazon Pricing | ~$150 – $170 | ~$250 – $280 | Sun Joe: ~$100 lower upfront purchase cost. |
Component Face-Off 1: Motor Mechanics (Universal vs Induction)
The motor represents the core engineering dividing line between these two machines. How electricity converts into mechanical shaft torque dictates operating volume, heat generation, and how many seasons the machine survives.
The Sun Joe SPX3000 Universal Motor
The SPX3000 uses a traditional 14.5-amp universal series-wound electric motor. Universal motors operate by conducting high-amperage current through physical spring-loaded carbon brushes that rub continuously against spinning copper commutator bars.
- High Armature RPM: The motor core spins between 15,000 and 20,000 RPM, requiring a reduction gear drive to step down speed to roughly 3,400 RPM for the wobble plate pump.
- Brush Friction & Carbon Arcing: Physical contact between the brushes and commutator creates continuous micro-arcing and thermal stress. Over 100 to 150 cumulative operating hours, the carbon brushes wear down completely, leading to intermittent power and motor failure.
- Acoustic Profile: The screaming gear reduction and high-velocity fan create an aggressive 86 dBA whine that easily penetrates closed windows.
The Greenworks Pro 2300 TruBrushless Induction Motor
The Greenworks GPW2301 replaces the mechanical commutator with an electronically commutated brushless induction motor.
- Direct Magnetic Drive: Current flows into stationary stator field windings that generate a rotating magnetic field, dragging the permanent magnet rotor without any physical brush contact.
- Extended Thermal Lifecycle: Without brush friction, the motor runs significantly cooler. High-grade motor bearings and thermal insulation allow the Greenworks to comfortably exceed 400 to 600 operating hours.
- Acoustic Damping: Emits a low-frequency hum around 74 dBA. You can clean near your home without ear protection or annoying neighbors.
Component Face-Off 2: Hose Connections — The M22-14mm vs M22-15mm Trap
If you intend to upgrade to a flexible rubber hose (such as the UberFlex pressure washer hose), install a short-barrel detailing spray gun, or connect an aftermarket foam cannon, this fitting distinction is crucial.
The global commercial standard for threaded pressure washer twist-couplings is M22-14mm. This indicates an M22 metric screw thread surrounding a 14.0mm internal brass cylindrical stem fitted with an external sealing O-ring.
Why Sun Joe M22-15mm Fittings Leak with Standard Aftermarket Hoses
Sun Joe manufactures its pump discharge ports and trigger gun inlets with a non-standard M22-15mm spec (15.0mm internal brass stem). If you connect a standard M22-14mm aftermarket hose directly to the Sun Joe SPX3000:
- The 14mm male nose will enter the 15mm female bore.
- However, a 1.0mm radial annular clearance gap remains around the perimeter.
- Under working pressure (1,450 PSI), the O-ring cannot compress against the bore wall, causing water blow-by that sprays out around the collar.
To use commercial accessories on the Sun Joe, you must purchase a brass M22-15mm female to M22-14mm male conversion adapter. Review our Pressure Washer Fittings Guide for exact thread and diameter measurements.
In contrast, the Greenworks Pro 2300 comes with standard M22-14mm fittings. You can unthread the stock hose and immediately snap in commercial quick-connect couplers, high-end commercial rubber hoses, or custom garage detailing hose reels without buying conversion adapters.
Component Face-Off 3: Pump Mechanics & Auto-Stop Architecture
Both units feature an automatic Total Stop System (TSS), but their pump configurations manage internal fluid temperatures differently.
The Sun Joe SPX3000 relies on an aluminum wobble plate (swash plate) pump. Rotating angled plates drive three pistons forward, while internal springs push them back. When the spray trigger is released, the unloader valve seats, trapping high-pressure fluid against a mechanical microswitch that cuts motor power. If your pressure washer starts rapid-cycling while idling on your driveway, read our guide on why electric pressure washers start and stop.
The Greenworks Pro 2300 employs an upgraded axial cam pump with cast-aluminum manifold heads and an integrated thermal relief valve. If the pump runs in bypass mode without water discharging from the nozzle, the recirculating water heats up rapidly from fluid friction. While excessive bypass heat can warp seals on the Sun Joe, the Greenworks thermal relief valve vents scalding water safely before packings degrade.
Component Face-Off 4: Car Detailing & Foam Cannon Performance
For automotive maintenance, effective washing requires adequate fluid volume (GPM) rather than extreme pressure. Ample water flow lubricates paint surfaces, breaks down road film, and flushes abrasive dust off body panels without scratching delicate clear coat.
| Detailing Performance Metric | Sun Joe SPX3000 | Greenworks Pro 2300 |
|---|---|---|
| Foam Cannon Shaving-Cream Thickness | Moderate (Requires swapping to 1.1mm orifice) | Thick & Clinging (Excellent dwell time) |
| Rinse Water Volume | 1.2 GPM (Slower soap rinsing) | Up to 2.3 GPM (Rapid sheet rinsing) |
| Hose Maneuverability Around Tires | Stiff PVC hose kinks under tires | Pliable rubber blend rolls smoothly |
| Cart Stability During Hose Pulls | Lightweight upright cart topples easily | Low center-of-gravity steel cart stays planted |
When mixing automotive car soaps and snow foams, maintaining accurate soap dilution ratios prevents stripping existing waxes and sealants. You can compute exact dilution volumes using our Chemical Dilution Calculator.
Fluid Dynamics Tip: Sizing Aftermarket Hoses
Both washers ship with factory 1/4-inch internal diameter (ID) hoses. Pushing 1.2 to 2.3 GPM through a 50-foot 1/4-inch line generates over 180 to 240 PSI of frictional head loss before water reaches the spray tip.
Upgrading to a 5/16-inch or 3/8-inch ID discharge hose significantly lowers internal friction, recovering up to 150 PSI of working pressure at your wand. Calculate precise pressure drops for your specific setup using our Hose Friction Loss Calculator.
Which One Should You Buy?
Choose the Sun Joe SPX3000 If:
- Your total budget is under $180 and you want the most initial cleaning power for your dollar.
- You only intend to wash outdoor patio furniture, garbage bins, and vinyl siding 2 to 4 times per year.
- You appreciate having dual onboard detergent tanks to switch between house wash and degreaser without draining.
- You plan to use the stock gun, hose, and lance without purchasing aftermarket upgrades.
Choose the Greenworks Pro 2300 If:
- You clean vehicles regularly and require thick foam cannon output and higher rinse flow rates.
- You want an induction motor that runs quietly (74 dBA) and lasts 3x to 4x longer than a universal brush motor.
- You want standard M22-14mm brass fittings that accept premium rubber hoses, stubby guns, and quick-disconnect wands without adapters.
- You want a wide steel roll-cage cart that stays upright when you pull the hose around vehicle tires.
