When an electric pressure washer pulses, hiccups, or revs for a split second with your hands completely off the trigger, you're dealing with a tiny pressure leak. The machine's Total Stop System (TSS) senses the pressure drop, assumes you just squeezed the trigger, and blips the motor on to top the pressure back up.
In residential electric pressure washers (from Sun Joe, Greenworks, Ryobi, Kärcher, and Active), this symptom is known on the shop bench as "ghost cycling" or "false starting." You lay the spray gun down to move a garden hose or grab soap, and suddenly the motor revs for half a second, shuts down, and repeats the cycle every 10, 30, or 60 seconds.
Homeowners often worry their motor is burning up or their wall outlet has a short. But it's almost always a basic plumbing issue. Water doesn't compress or stretch like air. When the trigger is shut, high pressure stays trapped inside the hose like a cocked spring. If even two drops of water escape past an O-ring or gun fitting, that trapped pressure crashes. The pressure switch snaps closed, and the motor runs for a fraction of a second to build the pressure back up. Here is how the system works and how to track down the leak across four simple fixes.
The 30-Second Ghost Pulse Diagnostic Triage
- Rapid Pulse (Every 1 to 5 Seconds): Obvious external leak. Check the wand quick-connect socket, high-pressure hose fittings, or pump outlet. You will usually see active water spraying or dripping.
- Slow Pulse (Every 20 to 60 Seconds): Tiny micro-weep. Usually an imperceptible seep past the spray gun trigger valve or a flattened rubber O-ring. A single drop escaping every 10 to 15 seconds is enough to bleed trapped pressure.
- Pulse With Zero Water On The Ground: Internal unloader leak. The unloader shuttle O-ring is nicked or jammed by grit, letting water bleed backward into the pump inlet chamber inside the pump head.
- Pulses Continuously WHILE Spraying: This is NOT ghost cycling. If your machine stutters or surges while you are actively spraying with the trigger held down, your pump is starving for garden hose water or the spray nozzle tip is clogged. See our guide on why electric pressure washers surge under load.
Why the Total Stop System Pulses When Idling
To understand why an electric pressure washer pulses with the trigger released, picture what happens inside the hose between the pump and the spray gun:
Unlike air, water barely compresses under pressure. When you let go of the trigger, the spray gun valve snaps shut. The pump's pistons push water against that closed door, seating the one-way discharge check valve. Trapped pressure climbs to around 1,900 PSI. That hydraulic force pushes a small metal pilot pin against a stiff return spring, tripping an electrical microswitch—the Total Stop System (TSS)—which cuts power to the motor.
In a standard 25-foot hose, the trapped water volume is only about two cups (500 ml). Because water does not stretch or compress, losing just a single drop or two of water causes trapped line pressure to drop by 400 to 500 PSI almost instantly.
The TSS microswitch has a built-in pressure gap before it turns back on. Typically, the switch cuts off at 1,900 PSI and resets when pressure dips below 1,450 PSI:
- Cut-Off (Around 1,900 PSI): The pilot pin extends, opens the microswitch contacts, and the motor shuts down immediately.
- Holding Pressure: If your seals and fittings are tight, the system holds high pressure indefinitely with the motor silent.
- Cut-In (Around 1,450 PSI): When fluid escapes, pressure drops below 1,450 PSI. The return spring pushes the pin back, closing the switch and firing the motor for half a second until pressure reaches 1,900 PSI again.
Technical Schematic — TSS Pressure Decay Loop
The diagram below maps the four common leak spots where trapped water pressure bleeds off, forcing the pressure switch to trip the motor:
Leak Rate vs Pulsing Speed
Because high-pressure hoses flex slightly under 2,000 PSI, the volume of trapped water changes depending on hose length and heat. The table below shows how small a leak needs to be to make your machine pulse at different speeds:
| Pulse Interval | Hourly Water Loss | Loss Rate per Second | What You See | Most Likely Culprit |
|---|---|---|---|---|
| Every 1 to 3 sec | 1 to 2.5 Gallons | 1.5 – 2.6 ml/sec | Visible squirt or growing puddle | Torn M22 coupler O-ring, cracked hose |
| Every 8 to 15 sec | About 1 quart | 0.3 – 0.5 ml/sec | Fast drip (1 drop every 2 seconds) | Wand quick-connect O-ring, loose swivel |
| Every 30 to 60 sec | About 1 cup | 0.08 – 0.1 ml/sec | Slow weep at nozzle tip (dries quickly) | Gun needle valve worn or dirty seat |
| Every 2 to 5 min | Under 1/4 cup | 0.02 ml/sec | No puddle anywhere on the ground | Internal unloader O-ring or check valve |
Notice that at a 45-second pulse interval, the leak is so small (less than a teaspoon a minute) that on warm concrete, it evaporates before making a puddle. This often tricks people into thinking their machine has an electrical short.
The 4 Mechanical Fixes for Ghost Pulsing
Follow these straightforward steps to track down and stop the leak:
Fix 1. Inspect and Replace High-Pressure O-Rings
Over 80% of pressure drops start at quick-connect couplers and M22 hose connections. Standard pressure washer O-rings are made of cheap nitrile rubber. After seasonal storage and regular use, nitrile flattens out or develops microscopic tears.
Check the rubber O-rings located:
- Inside the female 1/4-inch quick-connect socket on the wand.
- On the male stem of your high-pressure hose M22 fitting.
- Inside the pump discharge outlet port (check whether your machine uses a 14mm or 15mm internal stem).

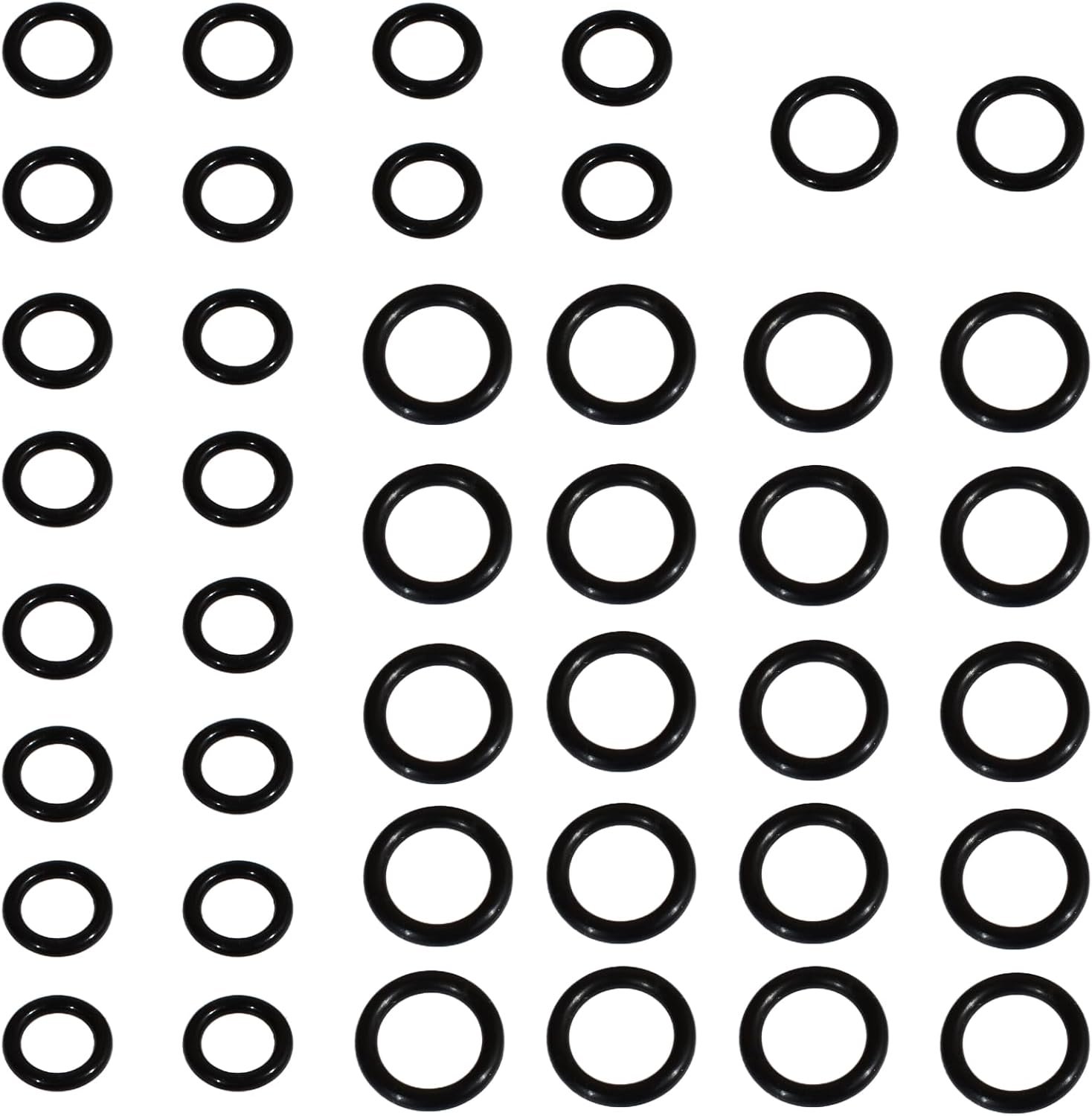

If an O-ring feels hard, looks flattened, or leaves black marks on your fingers, replace it with a 90-durometer Viton (FKM) O-ring. Viton resists high pressure up to 5,000 PSI and will not deteriorate from detergents.
- Cures False Starts in 2 Minutes: A microscopic weep at a wand quick-connect or hose coupler bleeds trapped line pressure. Swapping in a fresh O-ring takes two minutes and stops your motor from cycling every few seconds.
- Stops Extrusion Under 5,000 PSI: Cheap factory nitrile rubber O-rings flatten, turn gummy, or extrude into fitting gaps under pressure spikes. These 90A-durometer Viton seals hold their tight circular profile up to 5,000 PSI.
- Impervious to Heat and Cleaners: Viton fluorocarbon handles temperatures up to 300°F and resists pump oil and harsh chemical wash mixes that make standard nitrile rubber crack and leak.
- Fits All Standard Connections: Includes replacement seals for 1/4" wand quick-disconnect sockets, 3/8" hose couplers, and M22 pump outlet fittings on Sun Joe, Ryobi, Greenworks, Kärcher, and Simpson machines.
Fix 2. Service the Spray Gun Trigger Valve
Inside every spray gun is a small stainless steel valve that seats against a brass or plastic opening. When you let go of the trigger, a stiff spring presses this valve shut to stop water flow.
If sand or hard water scale slips past your garden hose inlet filter, it can get trapped in that valve seat. Even a tiny speck will keep the valve from closing completely, allowing a slow drip out the nozzle tip.
How to Check Gun Valve Seating
With the pressure washer turned off and garden hose turned on, take the nozzle off the wand tip. Wipe the tip completely dry with a paper towel. Watch it for 60 seconds. If a drop of water forms and drips out, your spray gun valve is leaking.
To flush it out, remove the wand, point the gun safely into a bucket, and pull the trigger on and off rapidly 5 to 10 times with the garden hose running. If water still drips after flushing, the internal valve seat is worn and the gun should be replaced.
Fix 3. Clean and Polish the Unloader Valve Shuttle
If all hose fittings and the spray gun are bone dry, but the motor still pulses every minute or two, the leak is internal. It is happening inside the unloader valve on the pump manifold.
The unloader valve uses a small shuttle with a rubber O-ring to seal off the bypass port. When this O-ring gets nicked or coated in hard water scale, high-pressure water leaks backward directly into the water inlet side of the pump.
Because the water recirculates inside the pump head, you will not see any puddle on the ground. To clean the unloader:
- Unplug the unit from the wall and turn off the water supply.
- Remove the outer plastic cover to reach the pump head.
- Unscrew the unloader retaining cap using a socket or wrench.
- Take out the spring and internal shuttle assembly.
- Check the O-rings for cuts or dirt. Clean off any mineral scale with a soft brush and warm vinegar, apply a light coat of silicone grease, and put it back together.
Fix 4. Service the Check Valve and Microswitch Pin
Next to the unloader port is the discharge check valve. This one-way valve holds pressure in the hose when the pump pistons stop moving.
If mineral scale builds up on the check valve seat, water slips backward from the hose into the pump chambers. As pressure bleeds down, the pressure switch drops, triggering the motor to restart.
Also check the pressure switch pin. On older machines, this little metal pin can stick because of dirt or corrosion. If the pin hangs up and does not move smoothly, machine vibrations can make the motor switch on and off randomly.
Why You Should Never Ignore Pulsing
It can be tempting to ignore ghost pulsing while taking a break, but letting the machine pulse repeatedly causes serious wear on two key parts:
- Motor Overheating: Every time an electric motor starts from a dead stop, it draws high initial current (18 to 25 amps). Starting every few seconds builds up heat inside the copper windings without giving the cooling fan time to blow it away.
- Switch Contact Wear: The pressure switch is rated for a set number of clicks. Pulsing every few seconds racks up hundreds of cycles in an hour, which can pit the electrical contacts and eventually weld them shut.
- Tripped Breakers: Repeated starts can trip the motor's built-in thermal protector or pop your home's wall breaker.
Key Takeaways — TSS Pressure Decay
- Tiny Leaks Cause Rapid Drops: Because water does not compress, losing less than a teaspoon of water drops line pressure enough to re-trigger the motor.
- Isolate Pump vs. Hose First: Cap the pump outlet directly with a solid plug. If pulsing stops, your pump and unloader are fine—the leak is in your hose, couplers, or gun.
- Use Viton O-Rings: Replace standard nitrile O-rings with 90-durometer Viton seals to stop leaks at quick-connect fittings.
- Internal Leaks Leave No Puddle: If the unit pulses with zero water on the ground, the unloader valve is leaking water back into the pump inlet internally.
- Turn Power Off When Stepping Away: If you stop spraying for more than two minutes, switch the machine OFF and pull the trigger to depressurize the hose.
Frequently Asked Questions
Why does my electric pressure washer pulse every few seconds when I am not spraying? +
Can an internal leak cause cycling even if there is no water puddle on the ground? +
Will ghost pulsing damage my electric pressure washer motor or switch? +
What is the difference between pulsing while spraying versus pulsing with trigger released? +
How do I isolate whether the leak is in my gun, hose, or pump manifold? +
Written by Najam Haider
Najam holds a BSc in Mechanical Engineering and specializes in fluid dynamics, high-pressure pump mechanics, and flow rate diagnostics. He tests residential and commercial pressure washers in shop conditions to diagnose real failure modes.
