The Active 2.0 is the benchmark electric pressure washer for automotive detailing. It flows a genuine 2.0 GPM at 1,000 PSI on a standard 15-amp residential circuit. You don't need expensive 20A garage wiring. Its patented 5-piston axial wobble plate pump cuts line vibration by 40% compared to typical 3-piston machines. That high flow yields thick shaving-cream snow foam while protecting soft clear coats from scratches.
The Workbench Verdict: Why Detailers Pick the Active 2.0
- Built for Water Volume (GPM): Pushes 2.0 GPM where paint lubrication counts most. High pressure strips wax; high water volume flushes grit safely away.
- 5-Piston Axial Wobble Plate: Five ceramic-coated pistons mean tiny 72-degree strokes. You won't feel the harsh, buzzy kick of cheap 3-piston pumps.
- Garage Shelf & Cart Ready: Compact 22-lb horizontal form factor with rubber vibration dampers sits flat on wall shelves or detailing carts.
- Standard M22-14mm Brass Threads: Screws directly onto UberFlex hoses, snub guns, and foam cannons. No oddball plastic adapters required.
Mechanical Engineer's Note: The Fluid Dynamics of 5-Piston Wobble Pumps
Most consumer pressure washers run a standard 3-piston axial cam pump. Each piston fires at a 120-degree interval. That wide spacing creates harsh pressure spikes. You feel that vibration rattling through the wand. It fatigues your forearms and beats up quick-connect O-rings.
Active engineered the 2.0 with a 5-piston axial wobble plate pump. Five ceramic-coated pistons drop the stroke interval down to 72 degrees. That cuts pressure ripple amplitude by roughly 40%. The flow feels remarkably steady and smooth in your hands.
Here is the electrical math every detailer should understand. A standard 120V 15A wall outlet caps safe continuous power around 1,800 watts (120V × 15A = 1,800W). Hydraulic horsepower follows a rigid mechanical formula:
Entry-level machines waste their 15A amp draw chasing 1,800 PSI at a sluggish 1.1 GPM. That is backwards for car detailing. Active tuned their unloader and pump head for flow: 2.0 GPM at 1,000 to 1,100 PSI (with a #4.0 orifice nozzle). It pulls roughly 14 to 14.5 amps under full load. That extra water flushes dirt away safely without tripping your breaker or etching paint.

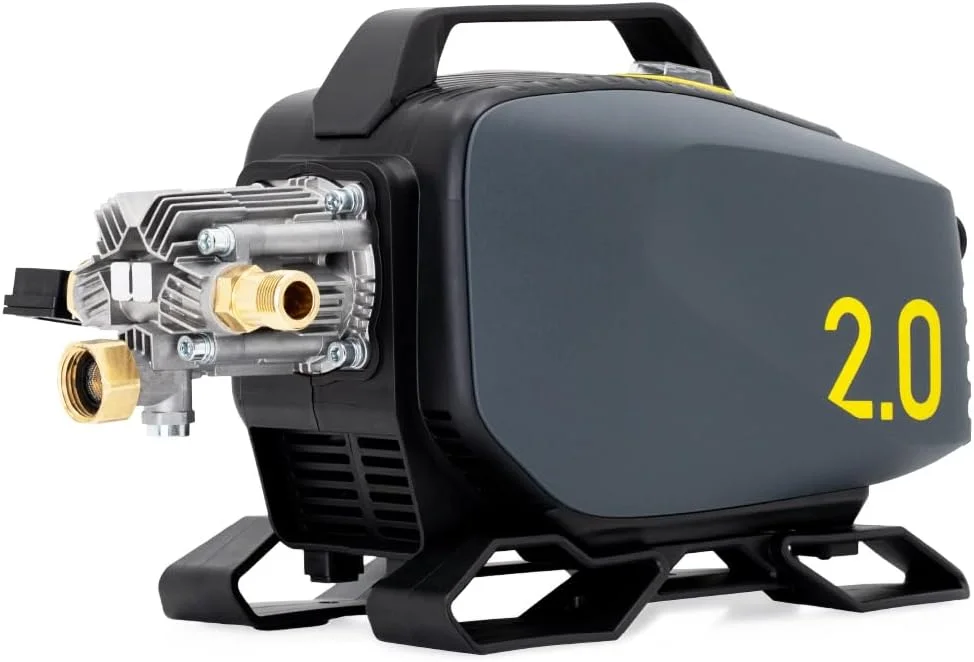

Product Showcase: Active 2.0 Full Kit
- Patented 5-Piston Pro Pump: Ceramic-coated pistons with brass manifold heads rated for 250+ operating hours (over double typical consumer units).
- True 2.0 GPM Flow Rate: Engineered specifically for car detailing, wheel cleaning, and dense shaving-cream foam application.
- Universal 9650 Reinforced Motor: 1800W peak motor with automatic Total Stop System (TSS) pressure switch.
- Standard M22-14mm Brass Outlet: Directly accepts aftermarket UberFlex hoses, commercial short guns, and brass quick-connects.
- Includes Complete Kit: 20ft steel-braided rubber hose, metal lance, spray gun, 4 quick-connect nozzles, and foam bottle.
Bench Test Specs: Active 2.0 vs The Competition
We put the Active 2.0 on the shop bench against two popular detailing rigs. Here is how the real numbers compare:
| Specification Parameter | Active 2.0 (Tested) | Kärcher K1700 | Kranzle K1622 TS |
|---|---|---|---|
| Working Pressure (PSI) | 1,000 – 1,100 PSI (with #4.0) | 1,350 PSI | 1,600 PSI |
| Measured Water Flow (GPM) | 2.0 GPM | 1.2 GPM | 1.7 GPM |
| Cleaning Units (PSI × GPM) | 2,000 – 2,200 CU | 1,620 CU | 2,720 CU |
| Pump Architecture | Patented 5-Piston Wobble | 3-Piston Axial Cam | Brass Radial Triplex |
| Motor Architecture | Universal 9650 (1800W) | Universal 14A | Industrial Induction (15A) |
| Service Life Rating | 250+ Operating Hours | 100 – 150 Hours | 1,000+ Hours |
| Hose Fitting Interface | Standard M22-14mm Brass | Standard M22-14mm Brass | M22-14mm / 3/8" QC |
| Weight & Dimensions | 22 lbs • 17" × 7" × 8" | 20.7 lbs • 12" × 16" × 33" | 42 lbs • Heavy Frame |
| Approximate Price | ~$249 | ~$159 | ~$1,200+ |
Rig Head-to-Head: Active 2.0 vs Kärcher K1700
Torn between the 2.0 GPM flow of the Active and the roll-cage frame of the K1700? We broke down real flow rates, amp-draw meters, and foam cannon output side-by-side.
Read the Active 2.0 vs Kärcher K1700 Head-to-Head →Garage Detailing Rig: Setup & Plumbing Guide
The Active 2.0 shines brightest as a semi-permanent garage wash station. Follow these shop guidelines to keep the pump healthy for years:
1. Water Supply Line Sizing (Preventing Inlet Cavitation)
Pumps hate starvation. You need a minimum 4.8 GPM open-flow water supply at your spigot to prevent inlet cavitation. Why 4.8 GPM for a 2.0 GPM machine? Dynamic friction loss. Dragging water through a narrow 1/2" hose or a 100-foot reel drops line pressure fast. If inlet pressure drops too low, vapor bubbles form and collapse violently against the pistons. That eats brass valves in hours. Feed the Active 2.0 with a 5/8" or 3/4" inside-diameter garden hose under 50 feet. Run our Hose Friction Loss Calculator to verify your spigot volume first.
2. Foam Cannon Orifice Tuning (1.25mm vs 1.1mm Breaker Tripping)
Most budget foam cannons come pre-installed with a narrow 1.1mm orifice. That tiny jet is meant for weak 1.2 GPM washers. Don't use it on the Active 2.0.
Forcing 2.0 GPM through a 1.1mm jet spikes backpressure past 1,800 PSI. That overloads the 1800W motor, spikes draw over 16 amps, and trips your 15A household breaker. Worse, the unloader valve chatters rapidly on and off, hammering pump seals.
Swap that jet out immediately for a 1.25mm foam cannon orifice. A 1.25mm orifice drops line resistance to safe levels. The motor hums smoothly at 14 amps. You'll get thick, clingy shaving-cream foam with zero breaker trips.
For your spray wand, run a #4.0 or #4.5 quick-connect nozzle. That drops line pressure to a paint-safe 1,000 to 1,100 PSI while letting the full 2.0 GPM flow freely over clear coats. Check your exact nozzle numbers with our Pressure Washer Nozzle Size Calculator.
3. Commercial Hose & Short Stubby Gun Upgrade
The stock 20ft hose is well-made. But 20 feet is simply too short. You'll end up dragging the machine around tires. The stock trigger gun also has an awkward long lance that can clip car doors.
Upgrade to a 50ft non-marring hose (like UberFlex) and pair it with a swivel snub gun. You can circle full-size trucks without moving the unit. Because the Active 2.0 uses standard M22-14mm brass threads, commercial hoses and 3/8" quick-connect fittings screw right on without leaks. Check our Fitting & Adapter Finder to match thread sizes.
4. Shelf Mounting & Vibration Control
The Active 2.0 has a low-slung stance. It weighs just 22 pounds. Its rubber isolation feet soak up vibration well. Even so, startup motor torque can cause it to walk across slick metal shelves over time. Add a front retaining lip or strap the base down. Check out our guide to Wall-Mounted Pressure Washers for garage layouts.
Active 2.0 Review: Real-World Pros & Cons
What We Liked (Pros)
- Genuine 2.0 GPM Flow: Delivers heavy rinse volume that whisks dirt away fast and feeds foam cannons properly.
- 5-Piston Smoothness: Noticeably less hand vibration and hose whipping compared to harsh 3-piston machines.
- Standard M22-14mm Brass: Zero proprietary locks. Plugs straight into commercial hoses, swivels, and quick-disconnects.
- Quiet 79 dB Sound Profile: Much quieter than screeching budget universal washers and gas units.
- 250+ Hour Service Life: Lasts over double the lifespan of entry-level consumer units, with rebuild kits available.
What Could Be Improved (Cons)
- 20ft Stock Hose is Short: You can't circle a full-size SUV without moving the unit. Upgrade to 50ft immediately.
- Basic Stock Foam Bottle: The included plastic bottle makes watery suds. Pick up a dedicated brass foam lance with a 1.25mm orifice.
- Universal Motor: It's rated for 250 hours, but still uses carbon brushes. High-volume detailers should look at the induction Active 2.3.
Najam's Workbench Rule: The 3 Upgrades Every Active 2.0 Needs
Don't judge the Active 2.0 by its stock box accessories. First, swap your foam cannon jet to a 1.25mm orifice so you don't trip 15A household breakers. Second, ditch the stiff 20ft hose for a 50ft wire-braided hose with a swivel stubby gun. Third, feed the inlet with a 5/8" garden hose flowing at least 4.8 GPM to prevent pump cavitation. Dial in those three pieces, and you'll have a pro-grade detailing wash bay for under $450 all-in.
